Products
Boring Bar Blank
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening, Sandblasting |
| Lead Time: | 30 Days |
| Payment: | TT |
- Specification

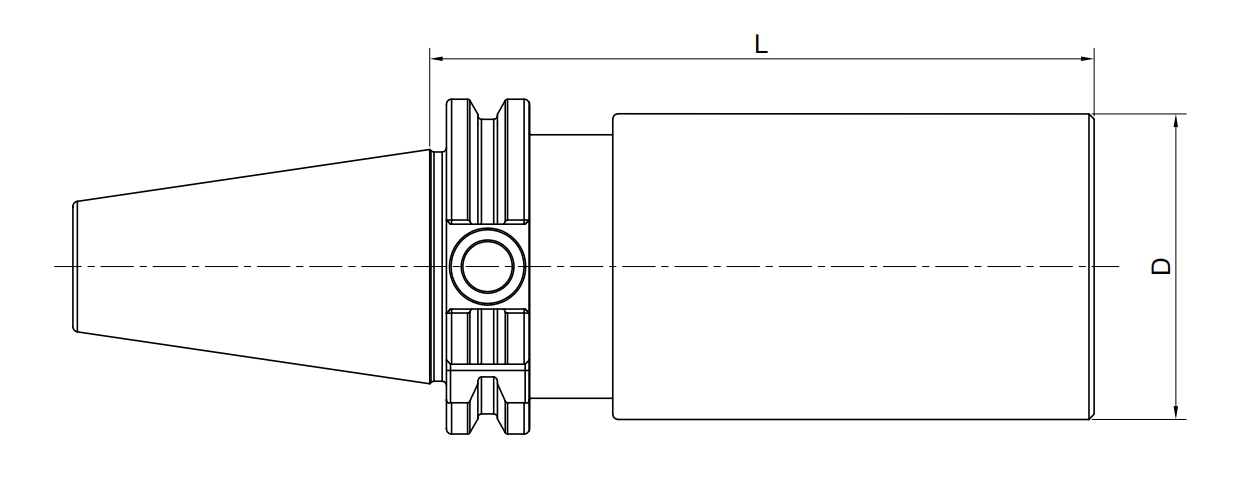

- Simple figure
- Precautions

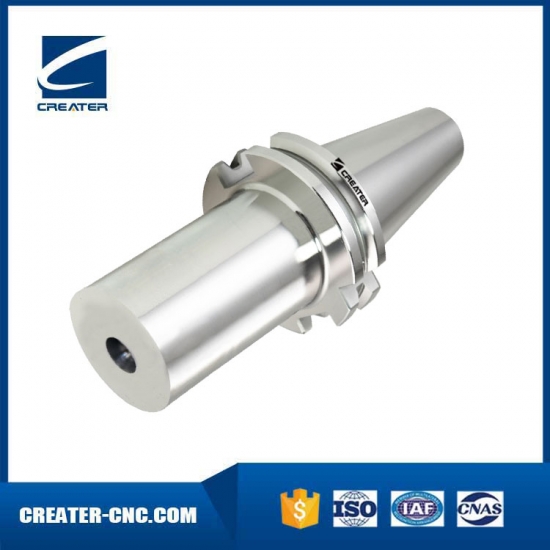

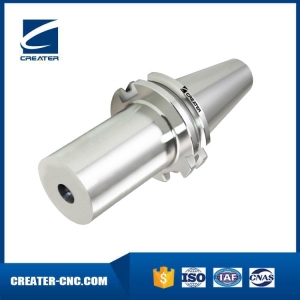

DIN 69871 Boring Bar Blanks
Taper Torlerabce: <AT3
Surface Treatment: Blackening
Application: Tool Holder Blank is for manufacturing special tools.
| Size | D | L1 | L |
| SK30-B12 | B12 | 18.5 | 25 |
| SK30-B16 | B16 | 24 | 25 |
| SK40-B12 | B12 | 18.5 | 25 |
| SK40-B16 | B16 | 24 | 25 |
| SK40-B18 | B18 | 32 | 25 |
| SK50-B12 | B12 | 18.5 | 25 |
| SK50-B16 | B16 | 24 | 25 |
| SK50-B18 | B18 | 32 | 25 |
Previous :DIN 69871 SK ER Collet Chuck with UM Nut
