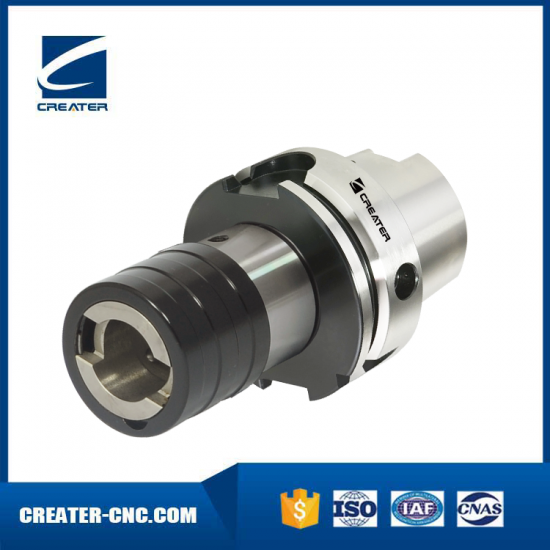

DIN 69893 Quick Change Tapping Chuck with Length Compensation
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions
Quick Change Tapping Chuck with Length Compensation
HSKA Tapping chuck with quick-change function using tap adaptor.
Short protrusion length. Length compensation mechanism.

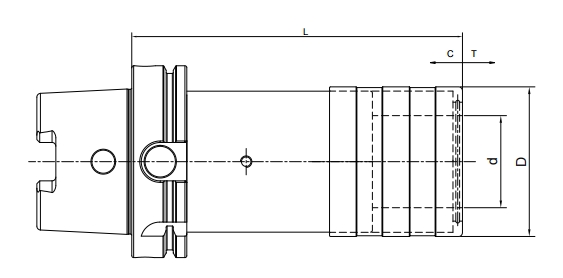

| Size | d | D | L | T | C |
| HSK63A-TC312-102 | 19 | 36 | 102 | 7.5 | 7.5 |
| HSK63A-TC820-140 | 31 | 53 | 140 | 12.5 | 12.5 |
| HSK63A-TC1433-210 | 48 | 78 | 210 | 22 | 22 |
| HSK100A-TC312-112 | 19 | 36 | 112 | 7.5 | 7.5 |
| HSK100A-TC820-148 | 31 | 53 | 148 | 12.5 | 12.5 |
| HSK100A-TC1433-144 | 48 | 78 | 144 | 22 | 22 |
