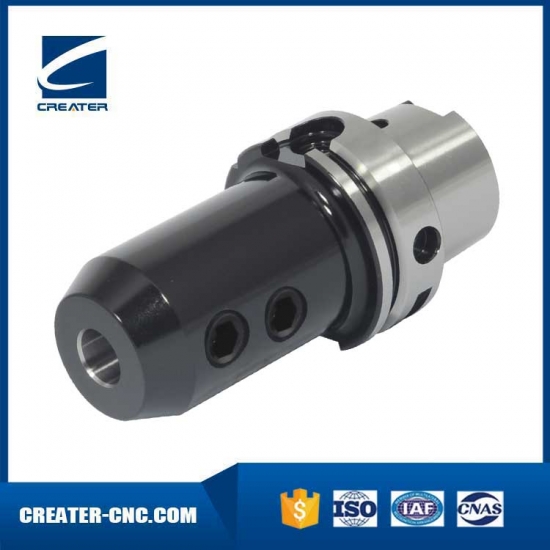

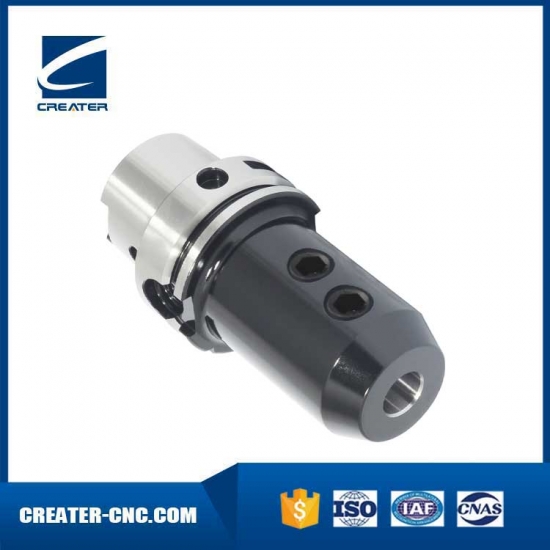

End Mill Holder Whistle Notch
HSKA End mill holders hold cutting tools with more rigidity than collets.
Available in Weldon type for using tools with Weldon flats.
Easy to use for clamping tools and disassemble tools.
This clamping system assures the end mill cannot spin in the holder during a heavy cut as is possible in a collet

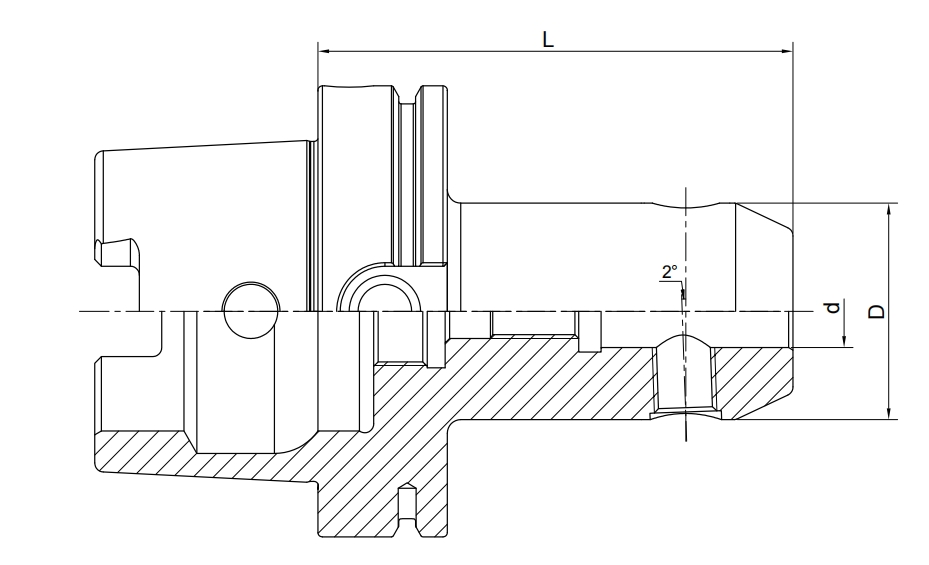

Model
d
D
L
M
Screw Quantity
HSK63A-SLB06-80
6
25
80
M6
1
HSK63A-SLB08-80
8
28
80
M8
1
HSK63A-SLB10-80
10
35
80
M10
1
HSK63A-SLB12-90
12
42
90
M12
1
HSK63A-SLB14-90
14
44
90
M12
1
HSK63A-SLB16-100
16
48
100
M14
1
HSK63A-SLB18-100
18
50
100
M14
1
HSK63A-SLB20-100
20
52
100
M16
1
HSK63A-SLB25-110
25
65
110
M18*2
2
HSK63A-SLB32-110
32
72
110
M20*2
2
HSK63A-SLB40-125
40
80
125
M20*2
2
HSK100A-SLB06-90
6
25
90
M6
1
HSK100A-SLB08-90
8
28
90
M8
1
HSK100A-SLB10-90
10
35
90
M10
1
HSK100A-SLB12-100
12
42
100
M12
1
HSK100A-SLB14-100
14
44
100
M12
1
HSK100A-SLB16-100
16
48
100
M14
1
HSK100A-SLB18-100
18
50
100
M14
1
HSK100A-SLB20-110
20
52
110
M16
1
HSK100A-SLB25-120
25
65
120
M18*2
2
HSK100A-SLB32-120
32
72
120
M20*2
2
HSK100A-SLB40-120
40
80
120
M20*2
2
