Products

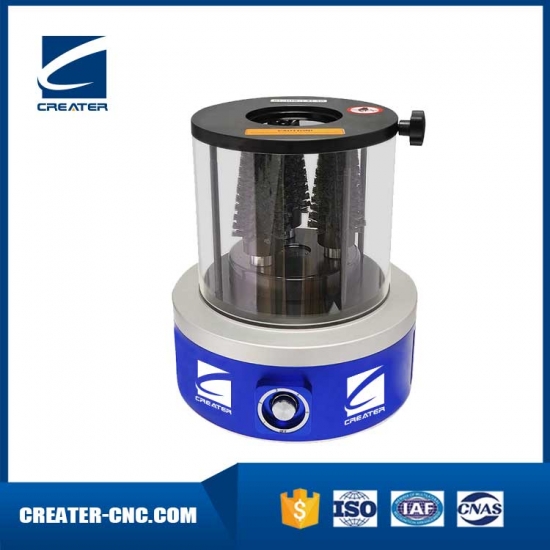

TOOL HOLDER CLEANING DEVICE
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions
All tool holders use the same base unit, only to change the brush head for different tapers.
Included reduction rings to be used with the brush head for toolholders according different taper standards.
● TCD-30: two reduction rings, one for SK30 tool holders, the other one for BT30 and CAT30.
● TCD-40: two reduction rings, one for BT40 tool holders, the other one for SK40 and CAT40.
● TCD-50: three reduction rings for BT50, SK50 and CAT50 tool holders.
● HSK cleaning devices are used for Form A/C/D/E/F, without reductions.
| Size | Taper | Base Unit | Brush Head | Brush Head D | Reduction Qty |
| TCD-30 | BT/SK/CAT30 | TCD-BU | TCD-30-BH | 50 | 2 |
| TCD-40 | BT/SK/CAT40 | TCD-BU | TCD-40-BH | 63.55 | 2 |
| TCD-50 | BT/SK/CAT50 | TCD-BU | TCD-50-BH | 100 | 3 |
| TCD-HSK50 | HSK50 | TCD-BU | TCD-HSK50-BH | 50 | - |
| TCD-HSK63 | HSK63 | TCD-BU | TCD-HSK63-BH | 63 | - |
| TCD-HSK100 | HSK100 | TCD-BU | TCD-HSK100-BH | 100 | - |
