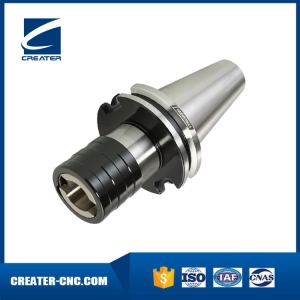

Quick Change Tapping Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 10-45 Days |
| Payment: | TT in Advance |
- Specification
- Simple figure
- Precautions
Quick Change Tapping Chuck with Length Compensation
Taper Standard: ANSI B 5.50 CAT Tool Holders
Taper Torlerance: <AT3
Surface Treatment: Blackening
Application: assembling with tapping collets for tapping operation.
Tapping Collets with and without cluth are for your choice.

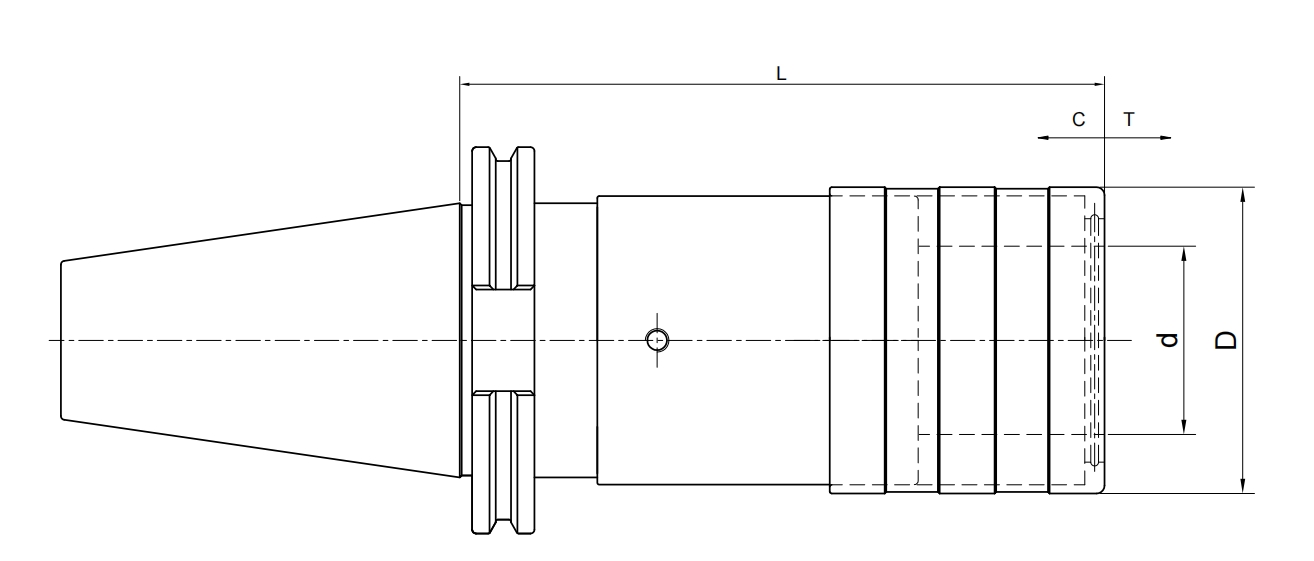

| Size | D | d | L | T | C |
| CAT40-TC312-65 | 36 | 19 | 65 | 7.5 | 7.5 |
| CAT40-TC820-93 | 54 | 31 | 93 | 12.5 | 12.5 |
| CAT40-TC1433-156 | 78 | 48 | 156 | 22 | 22 |
| CAT50-TC312-100 | 36 | 19 | 100 | 7.5 | 7.5 |
| CAT50-TC820-100 | 54 | 31 | 100 | 12.5 | 12.5 |
| CAT50-TC1433-142 | 78 | 48 | 142 | 22 | 22 |
