Straight Shank Collet
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Bright |
| Lead Time: | 5-30 Days |
- Specification
- Simple figure
- Precautions

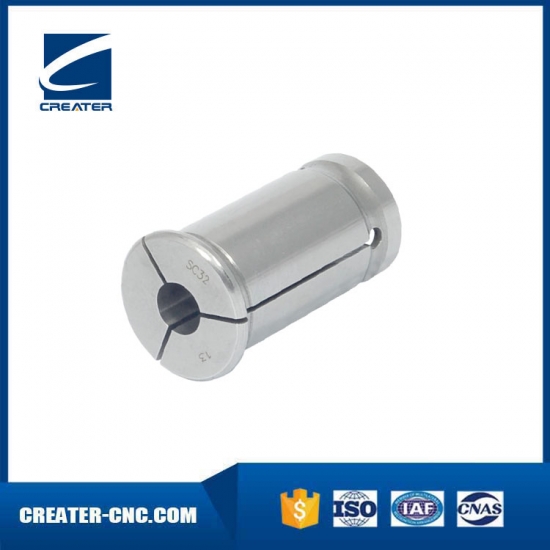

Straight Shank Collet; Milling Collets for Power Milling Chucks
Accuracy: 0.015 mm

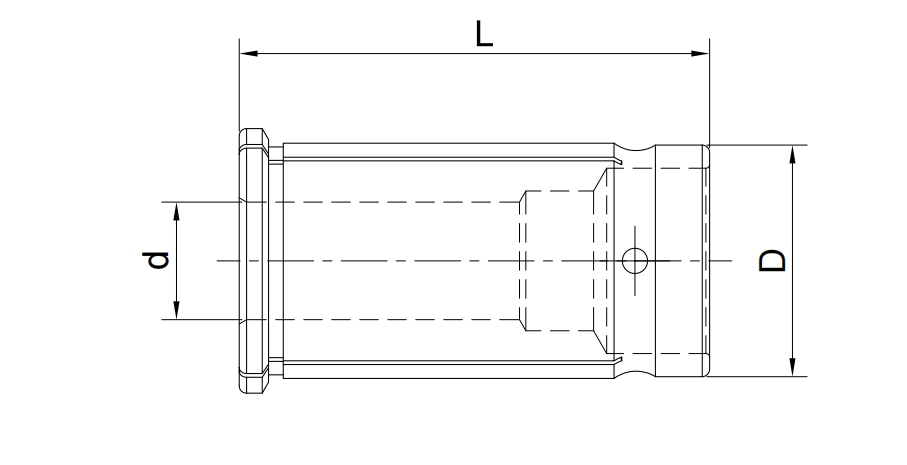

| Size | d | D | L |
| SC16-03 | 3 | 16 | 45 |
| SC16-04 | 4 | 16 | 45 |
| SC16-05 | 5 | 16 | 45 |
| SC16-06 | 6 | 16 | 45 |
| SC16-08 | 8 | 16 | 45 |
| SC16-10 | 10 | 16 | 45 |
| SC16-12 | 12 | 16 | 45 |
| SC20-03 | 3 | 20 | 50 |
| SC20-04 | 4 | 20 | 50 |
| SC20-05 | 5 | 20 | 50 |
| SC20-06 | 6 | 20 | 50 |
| SC20-08 | 8 | 20 | 50 |
| SC20-10 | 10 | 20 | 50 |
| SC20-12 | 12 | 20 | 50 |
| SC20-14 | 14 | 20 | 50 |
| SC20-16 | 16 | 20 | 50 |
| SC25-03 | 3 | 25 | 60 |
| SC25-04 | 4 | 25 | 60 |
| SC25-05 | 5 | 25 | 60 |
| SC25-06 | 6 | 25 | 60 |
| SC25-08 | 8 | 25 | 60 |
| SC25-10 | 10 | 25 | 60 |
| SC25-12 | 12 | 25 | 60 |
| SC25-14 | 14 | 25 | 60 |
| SC25-16 | 16 | 25 | 60 |
| SC25-18 | 18 | 25 | 60 |
| SC25-20 | 20 | 25 | 60 |
| SC32-03 | 3 | 32 | 64 |
| SC32-04 | 4 | 32 | 64 |
| SC32-05 | 5 | 32 | 64 |
| SC32-06 | 6 | 32 | 64 |
| SC32-08 | 8 | 32 | 64 |
| SC32-10 | 10 | 32 | 64 |
| SC32-12 | 12 | 32 | 64 |
| SC32-14 | 14 | 32 | 64 |
| SC32-16 | 16 | 32 | 64 |
| SC32-18 | 18 | 32 | 64 |
| SC32-20 | 20 | 32 | 64 |
| SC32-25 | 25 | 32 | 64 |
| SC42-03 | 3 | 42 | 80 |
| SC42-04 | 4 | 42 | 80 |
| SC42-05 | 5 | 42 | 80 |
| SC42-06 | 6 | 42 | 80 |
| SC42-08 | 8 | 42 | 80 |
| SC42-10 | 10 | 42 | 80 |
| SC42-12 | 12 | 42 | 80 |
| SC42-14 | 14 | 42 | 80 |
| SC42-16 | 16 | 42 | 80 |
| SC42-18 | 18 | 42 | 80 |
| SC42-20 | 20 | 42 | 80 |
| SC42-22 | 22 | 42 | 80 |
| SC42-24 | 24 | 42 | 80 |
| SC42-25 | 25 | 42 | 80 |
| SC42-28 | 28 | 42 | 80 |
| SC42-30 | 30 | 42 | 80 |
| SC42-32 | 32 | 42 | 80 |
