Tool Holder Tightening Fixture
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao, Tianjin |
| Lead Time: | 10 Days |
| Payment: | TT in Advance |
- Specification
- Simple figure
- Precautions

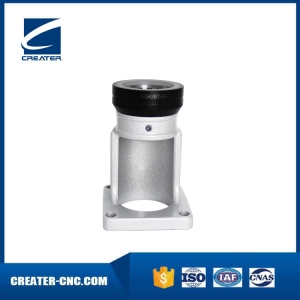

Tool Holder Tightening Fixtures
New Locking Device Design for all taper tool holders.
Used tapers are as below:
MAS BT Taper Tool Holders: BT30, BT40, BT50 Tool Holders
DIN 69871 SK Shanks: SK30, SK40, SK50 Tool Holders
ANSI B5.50 CAT Tools: CAT30, CAT40, CAT50 Tool Holders
DIN69893 HSK Tooling: HSK32, HSK40, HSK50, HSK63, HSK80, HSK100 Tool Holders
Other tapers as ISO30 Tool Holders and HSK63F Tooling are also available, please contact us for details.

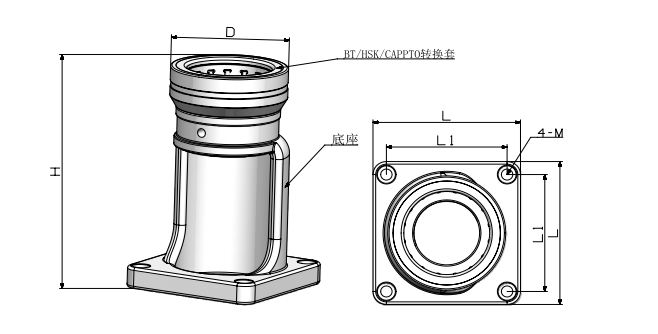

| Size | Tool Holder | D | H | L | L1 | M |
| TMS40-32 | HSK32, C3 | 76 | 168 | 110 | 90 | M8 |
| TMS40-40 | HSK40, C4 | 76 | 168 | 110 | 90 | M8 |
| TMS40-46 | BT30 | 76 | 168 | 110 | 90 | M8 |
| TMS40-50 | HSK50, SK30, C5 | 76 | 168 | 110 | 90 | M8 |
| TMS40-63 | HSK63, BT40, C6 | 87 | 172 | 110 | 90 | M8 |
| TMS40-63.5 | CAT40 | 87 | 172 | 110 | 90 | M8 |
| TMS40-63.55 | SK40 | 87 | 172 | 110 | 90 | M8 |
| TMS50-80 | HSK80, C8 | 114 | 219 | 160 | 130 | M8 |
| TMS50-97.5 | SK50 | 124 | 219 | 160 | 130 | M8 |
| TMS50-98.43 | CAT50 | 124 | 219 | 160 | 130 | M8 |
| TMS50-100 | HSK100, BT50 | 124 | 219 | 160 | 130 | M8 |
