OZ Collet Chuck DIN6391
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening, Sandblasting, Plating |
| Lead Time: | 30 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

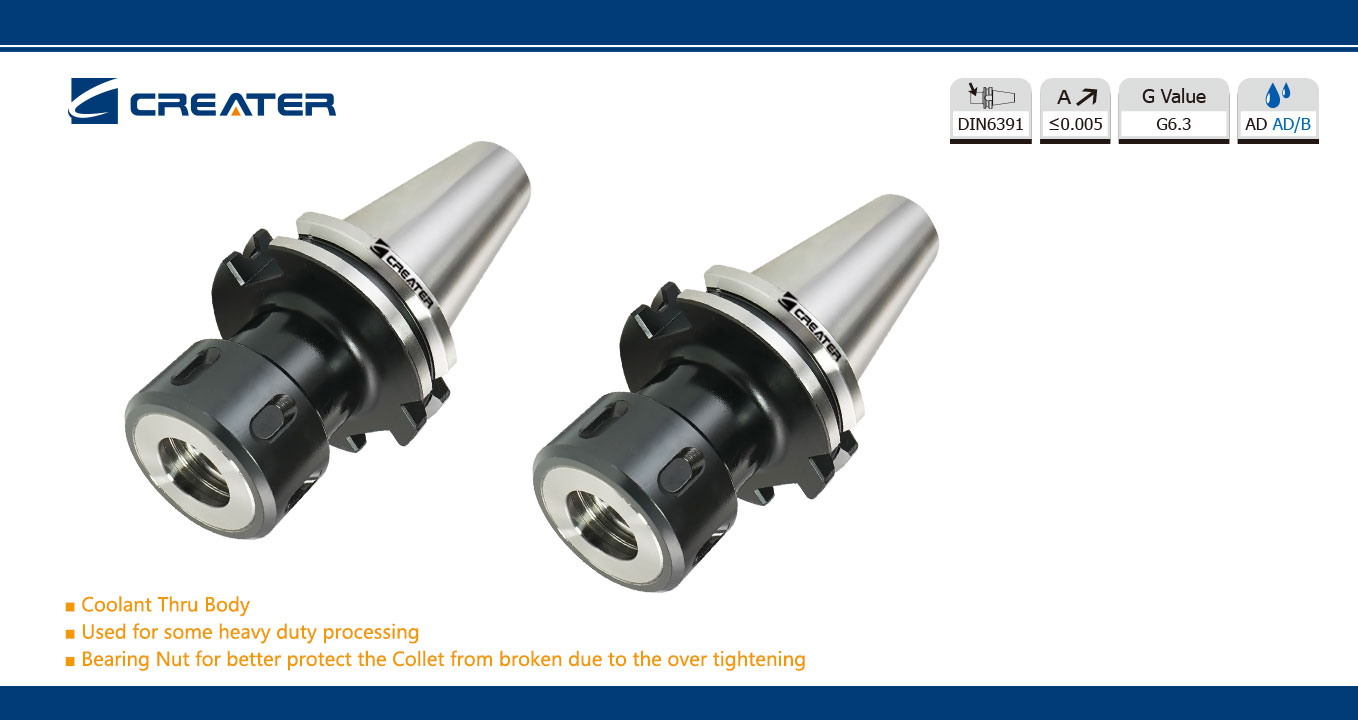

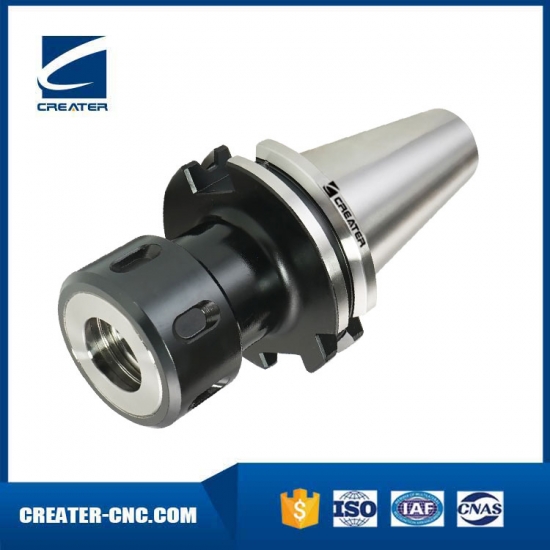

DIN69871 OZ Collet Chuck DIN 6391
Taper: DIN69871
Runout: <0.005mm
Taper Torlerabce: <AT3
Balancing: G6.3/15000
Surface Treatment: Blackening

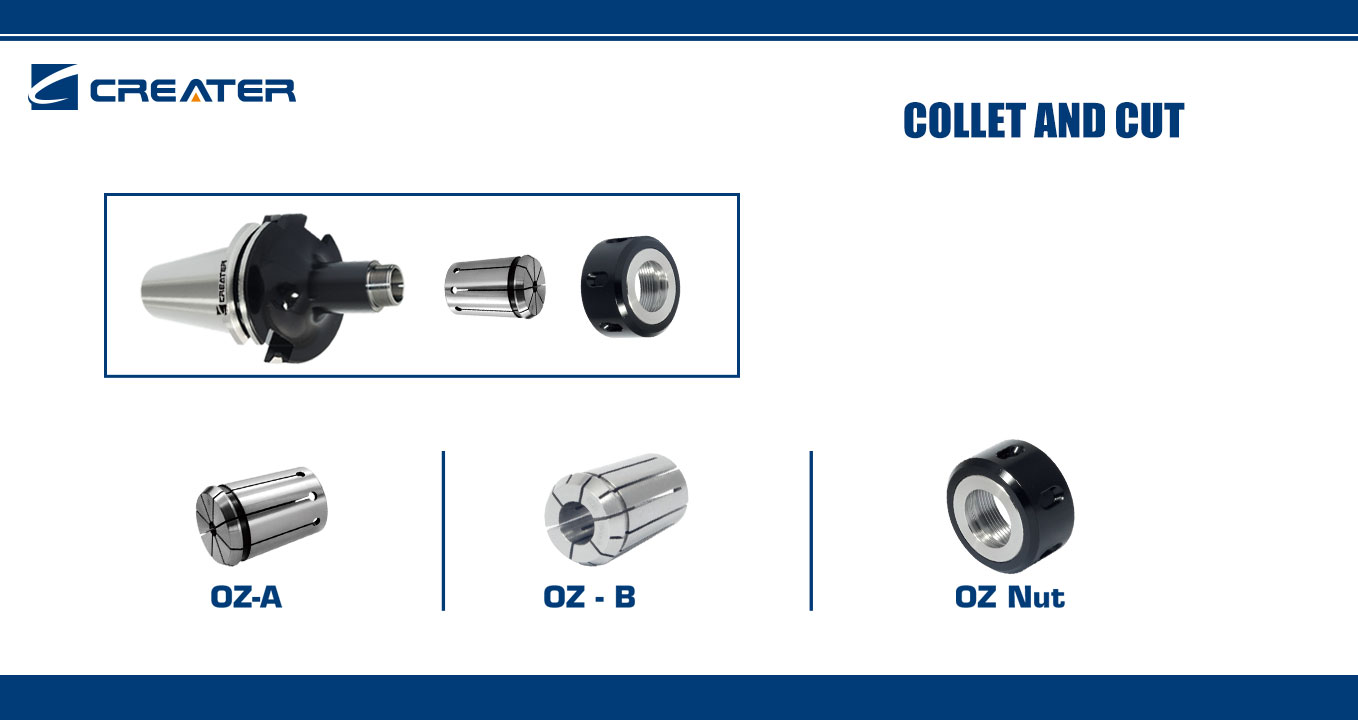

Application: DIN69871 OZ Collet Chuck is for clamping tools with straight shank in collets DIN6388.

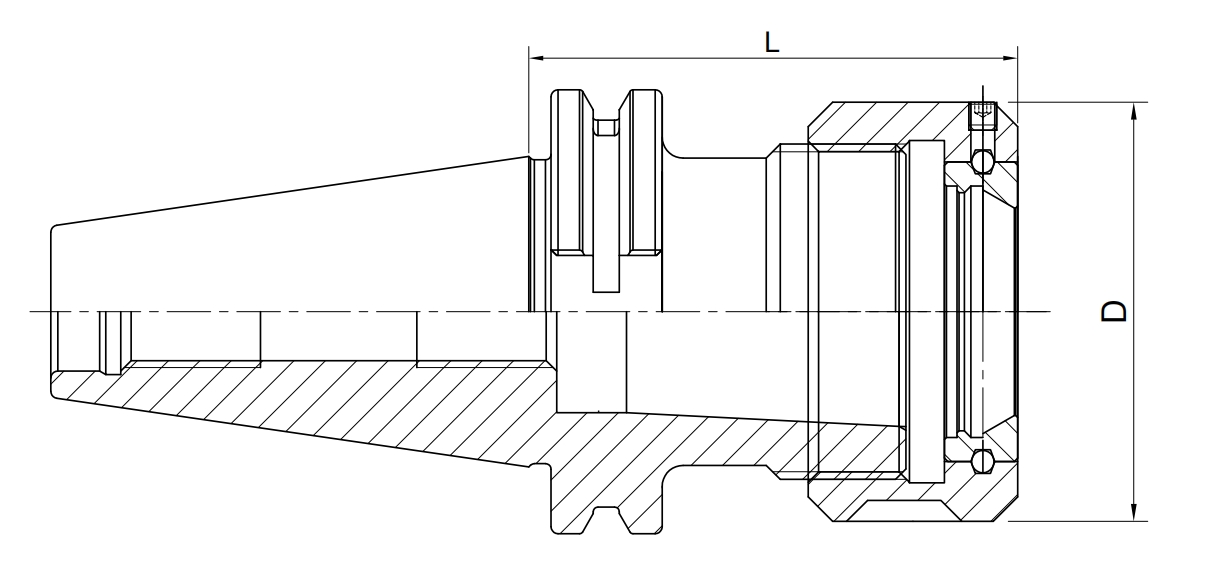

| Size | D | L | Capacity |
| SK40-OZ16-70 | 43 | 70 | 2-16 |
| SK40-OZ25-70 | 60 | 70 | 2-25 |
| SK40-OZ32-90 | 72 | 90 | 4-32 |
| SK40-OZ16-100 | 43 | 100 | 2-16 |
| SK40-OZ25-100 | 60 | 100 | 2-25 |
| SK50-OZ25-70 | 60 | 70 | 2-25 |
| SK50-OZ32-80 | 72 | 80 | 4-32 |
