Straight Shank Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 2-20 Days |
| Payment: | TT Payment in Advance |
- Specification
- Simple figure
- Precautions

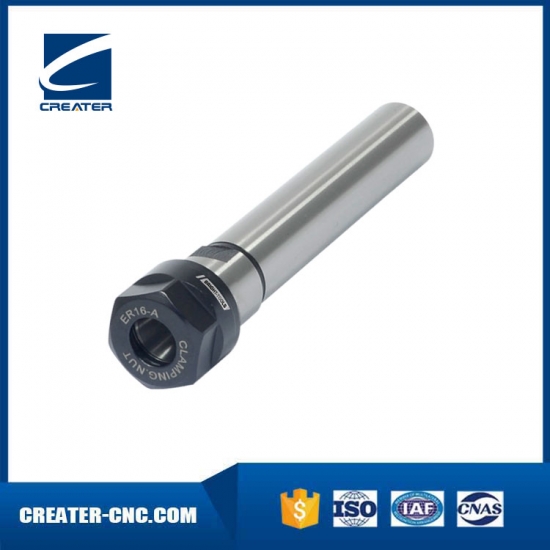

Straight Shank Collet Chuck with Hex Nuts
Straight Shank Collet Chuck Tool Holders are used for clamping cutting tools with ER Collets DIN6499
Accuracy: 0.005mm
Accessories: ER Collets, ER Nuts Hex Type
| Size | C | D | L1 | L |
| C10-ER8A-100 | 10 | 13.3 | 100 | 124.5 |
| C10-ER11A-100 | 10 | 19 | 100 | 124 |
| C12-ER8A-100 | 12 | 13.3 | 100 | 124.5 |
| C12-ER11A-100 | 12 | 19 | 100 | 124 |
| C16-ER11A-50 | 16 | 19 | 50 | 74 |
| C16-ER11A-100 | 16 | 19 | 100 | 124 |
| C16A-ER16A-100 | 16 | 28 | 100 | 131 |
| C16A-ER16A-150 | 16 | 28 | 150 | 181 |
| C20-ER16A-100 | 20 | 28 | 100 | 131 |
| C20-ER16A-150 | 20 | 28 | 150 | 181 |
| C20A-ER20A-100 | 20 | 34 | 100 | 136.5 |
| C20A-ER20A-150 | 20 | 34 | 150 | 186.5 |
| C25-ER16A-100 | 25 | 28 | 100 | 136.5 |
| C25-ER16A-150 | 25 | 28 | 150 | 186.5 |
| C25-ER20A-100 | 25 | 34 | 100 | 136.5 |
| C25-ER20A-150 | 25 | 34 | 150 | 186.5 |
