Products
Straight Shank Collet Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 2-20 Days |
| Payment: | TT Payment in Advance |
- Specification
- Simple figure
- Precautions

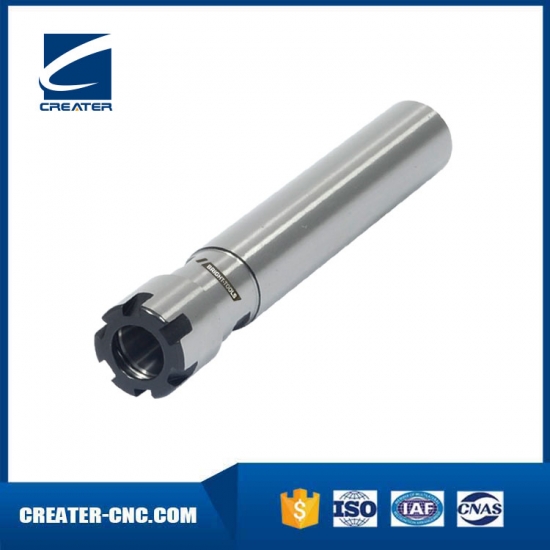

Straight Shank Collet Chuck with Mini Nuts
Usage: for clamping cutting tools in collets DIN6499
Runout: 0.005mm
ER Nuts: Mini Type

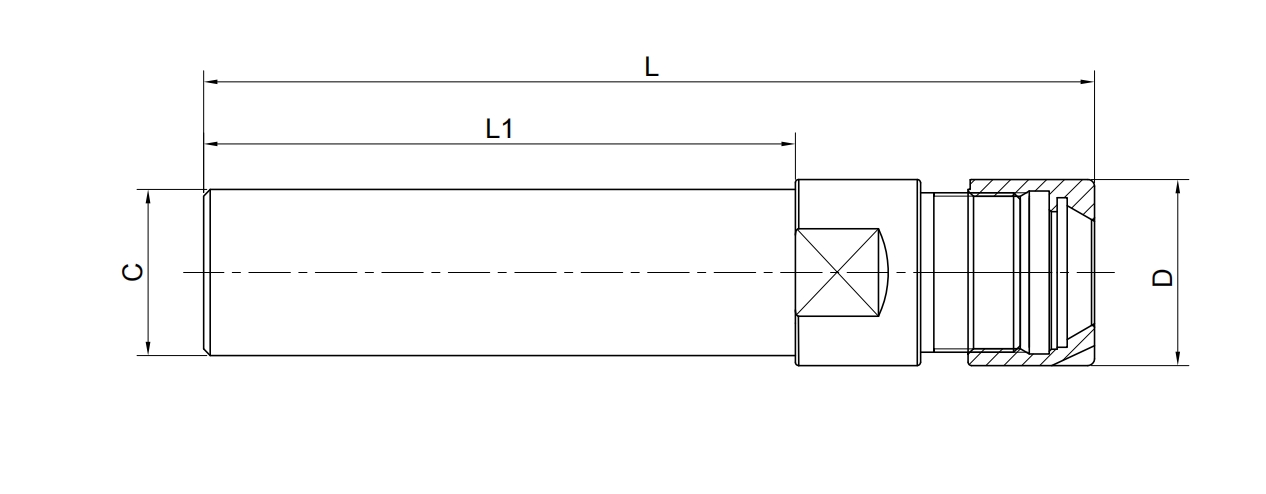

| Size | C | D | L1 | L |
| C8-ER8M-100 | 08 | 12 | 100 | 124.5 |
| C10-ER8M-100 | 10 | 12 | 100 | 124.5 |
| C10-ER8M-150 | 10 | 12 | 150 | 174.5 |
| C12-ER11M-100 | 12 | 16 | 100 | 125 |
| C16-ER11M-100 | 16 | 16 | 100 | 125 |
| C16-ER11M-150 | 16 | 16 | 150 | 175 |
| C16-ER16M-100 | 16 | 22 | 100 | 131 |
| C16-ER16M-150 | 16 | 22 | 150 | 181 |
| C20-ER16M-100 | 20 | 22 | 100 | 131 |
| C20-ER16M-150 | 20 | 22 | 150 | 181 |
| C20-ER20M-100 | 20 | 28 | 100 | 137 |
| C20-ER20M-150 | 20 | 28 | 150 | 187 |
| C25-ER16M-100 | 25 | 22 | 100 | 131 |
| C25-ER16M-150 | 25 | 22 | 150 | 181 |
| C25-ER20M-100 | 25 | 28 | 100 | 137 |
| C25-ER20M-150 | 25 | 28 | 150 | 187 |
