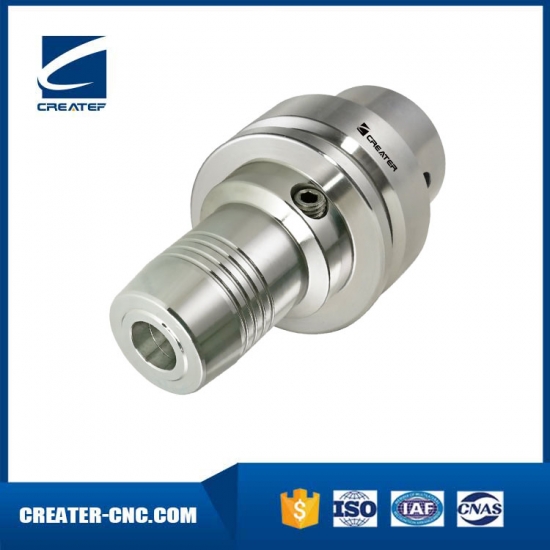

DIN69893 HSK-E Hydraulic Chuck, Standard

Brand:	creater

contact now

Specification
Simple figure
Precautions

HSKE type Hydraulic holder is popular used by woodworking industry, With a few simple actions, the tool can be changed quickly and rocess reliably. Insert the tool into the hydraulic expansion toolholder, use an Allen key to screw in the clamping screw to dead stop – finished! It is ime savings due to reduced set-up times and no investment and ergy costs for additional clamping devices.

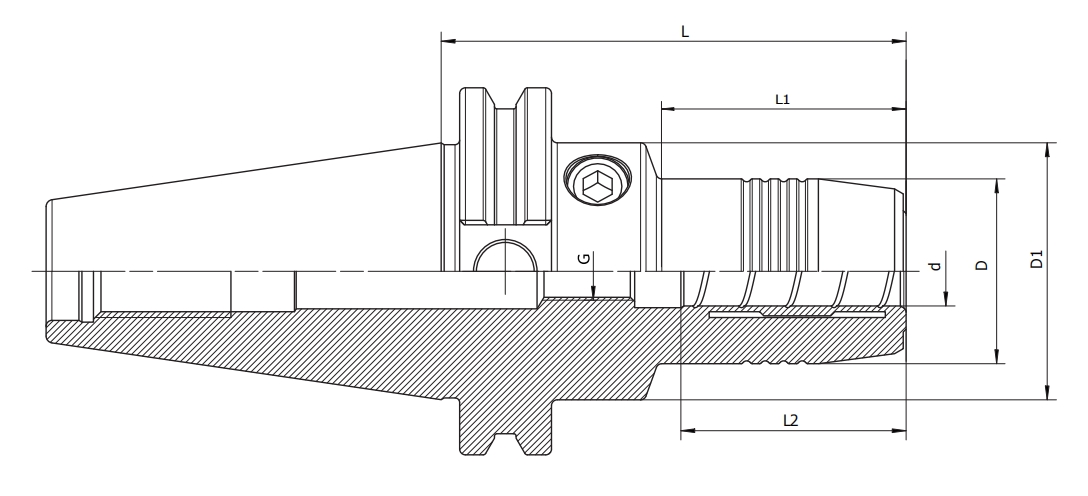

Size	d	D	D1	L	L1	L2	G
HSK40E-HY6-70	6	26	34	70	36	27	M5
HSK40E-HY8-70	8	28	34	70	36	27	M6
HSK40E-HY10-75	10	30	34	75	42	32	M6
HSK40E-HY12-80	12	32	34	80	48	37	M6

HSK50E-HY6-70	6	26	40	70	28	27	M5
HSK50E-HY8-70	8	28	40	70	28	27	M6
HSK50E-HY10-75	10	30	40	75	34	32	M8x1
HSK50E-HY12-85	12	32	40	85	44	37	M10x1
HSK50E-HY16-90	16	38	53	90	30	42	M12x1
HSK50E-HY20-90	20	42	60	90	29	42	M16x1

High precision 0.003mm
Better anti-vibration result
High precision machining
