JIS B 6339 Power Milling Chuck
/uploadfile/202505/20/7d888faa75092d9c99d9d4c934bb726b_square.jpg /uploadfile/202505/20/b074a27bbe726e56dea571e8e1640e14_square.jpg

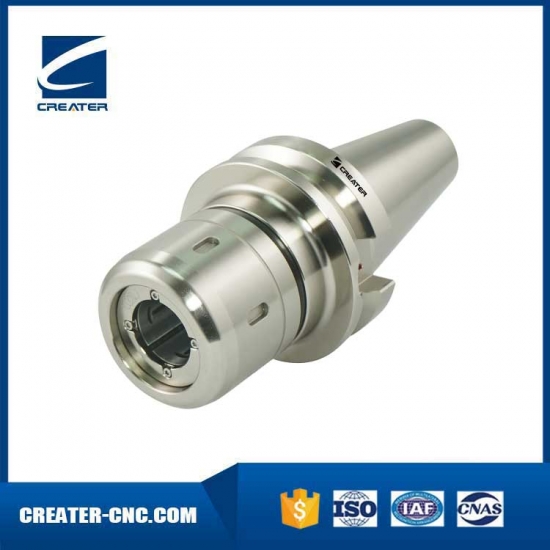

JIS B 6339 Power Milling Chuck
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Size Type d D D1 L L1 L2 ℓ ℓ1 ℓ2 d1 L0 G
BT30-CT16SA-90 1 16 45 - 90 - - 65 - 15 - - M10
BT30-CT20SA-90 2 20 52 - 90 - - 80 - 15 - 40 M12
BT30-CT25SA-90 2 25 61 - 90 - - 80 - 15 - 31 M12
BT40-CT16SA-90 1 16 45 - 90 - - 65 - 15 - - M10
BT40-CT20SA-90 1 20 52 - 90 - - 80 - 15 - - M12
BT40-CT25SA-90 1  25  61 - 90 - - 80 - 15 - - M12
BT40-CT25SA-105 1  25  61 - 105  - - 80  - 15  - 一 M12
BT40-CT32SA-90 2  32  73  - 90  - - 76  32  17  26  31 M18
BT40-CT32SA-105 2  32  73  - 105  - - 85  23  17  26  44  M18
BT40-CT32SA-135 2  32  73  - 135  - - 120  17  - 69  M18
BT50-CT16SA-90 3 16 45 58 90 7 45 65 - 20 - - M10
BT50-CT20SA-90 3 20 52 65 90 7 45 80 - 15 - - M12
BT50-CT20SA-105 3 20 52 70 105 9 58 80 - 15 - - M12
BT50-CT20SA-135 3 20 52 73 135 39 58 80 - 15 - - M12
BT50-CT20SA-165 3 20 52 73 165 69 58 80 - 15 - - M12
BT50-CT25SA-105 3 25 61 82 105 11 56 80 - 15 - - M12
BT50-CT25SA-135 3 25 61 83 135 41 56 80 - 15 - - M12
BT50-CT25SA-165 3 25 61 86 165 71 56 80 - 15 - - M12
BT50-CT32SA-110 1 32 73 - 110 - - 120 - 20 - - M18
BT50-CT32SA-135 3 32 73 88 135 41 56 120 - 20 - - M18
BT50-CT32SA-165 3 32 73 86 165 71 56 120 - 20 - - M18
BT50-CT32SA-200 3 32 73 88 200 106 56 120 - 20 - - M18
BT50-CT32SA-250 3 32 73 88 250 156 56 120 - 20 - - M18
BT50-CT32SA-300 3 32 73 88 300 206 56 120 - 20 - - M18
BT50-CT32SA-350 3 32 73 88 350 256 56 120 - 20 - - M18
BT50-CT32SA-400 3 32 73 88 400 306 56 120 - 20 - - M18
BT50-CT32SA-450 3 32 73 88 450 356 56 120 - 20 - - M18
BT50-CT42SA-105 1 42 88 - 105 - - 120 - 20 - - M18
BT50-CT42SA-135 1 42 88 135 - - 120 - 20 - - M18
BT50-CT42SA-165 1 42 88 - 165 - - 120 - 20 - - M18
BT50-CT42SA-200 1 42 88 - 200 - - 120 - 20 - - M18
BT50-CT42SA-250 1 42 88 - 250 - - 120 - 20 - - M18
BT50-CT42SA-300 1 42 88 - 300 - - 120 - 20 - - M18
BT60-CT32SA-135 3 32 73 88 135 31 56 120 - 20 - - M18
BT60-CT42SA-135 3 42 88 110 135 31 56 120 - 20 - - M18
