HSK-T Turning Tool SVUBR | SVUBL | SVUCR | SVUCL 93°/35°
contact now
| Brand: | creater |
|---|
- Specification
- Simple figure
- Precautions

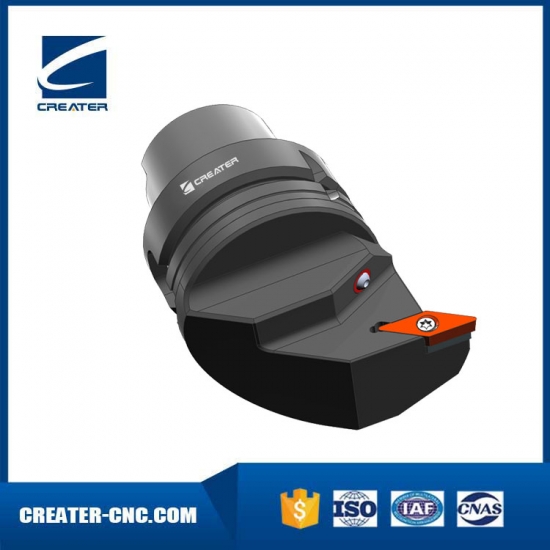

HSK63T and HSK100T Internal Turning Tool Holder for VB and VC Style Positive Inserts
Screw clamping
Suitable for VB..1604 and VC..1604 inserts
Insert clamping system: S
Insert shape code: V
Tool cutting edge angle code: U
Insert clearance angle: B or C
Direction of cutting code: R and L
Tool cutting edge angle: 93 deg.
|

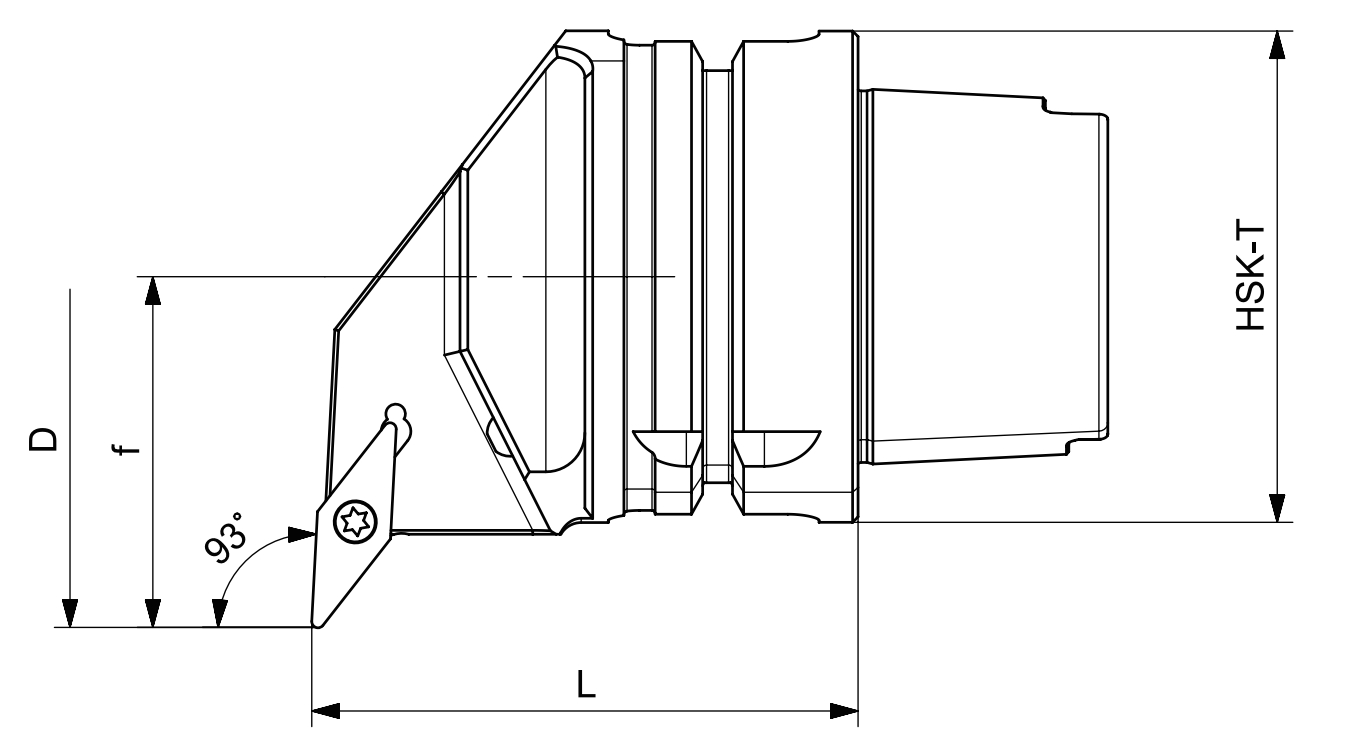

Size |
f |
D |
L |
Direction |
Inserts N. |
|
HSK63T-SVUBR-45070-16 |
45 |
80 |
70 |
R |
VB..1604.. |
|
HSK63T-SVUBL-45070-16 |
45 |
80 |
70 |
L |
VB..1604.. |
|
HSK63T-SVUCR-45070-16 |
45 |
80 |
70 |
R |
VC..1604.. |
|
HSK63T-SVUCL-45070-16 |
45 |
80 |
70 |
L |
VC..1604.. |
|
HSK100T-SVUBR-63100-16 |
63 |
120 |
100 |
R |
VB..1604.. |
|
HSK100T-SVUBL-63100-16 |
63 |
120 |
100 |
L |
VB..1604.. |
|
HSK100T-SVUCR-63100-16 |
63 |
120 |
100 |
R |
VC..1604.. |
|
HSK100T-SVUCL-63100-16 |
63 |
120 |
100 |
L |
VC..1604.. |
