DIN69871 Power Milling Chuck
/uploadfile/202505/20/3929dcbb6e79bfcb342c5448926a82b3_square.jpg

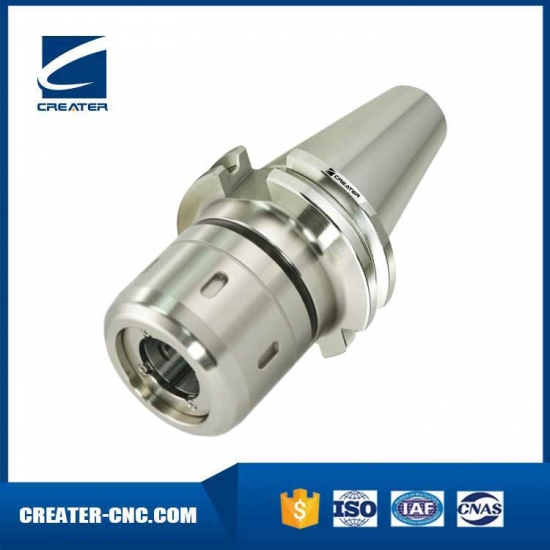

DIN69871 Power Milling Chuck
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Size d D1 L H
SK30-CT16SA-90 16 45 90 65
SK30-CT16SA-105 16 45 105 65
SK30-CT20SA-90 20 52 90 80
SK30-CT20SA-105 20 52 105 80
SK40-CT16SA-90 16 45 90 65
SK40-CT20SA-90 20 52 90 80
SK40-CT20SA-105 20 52 105 80
SK40-CT20SA-120 20 52 120 80
SK40-CT25SA-105 25 61 105 80
SK40-CT25SA-135 25 61 135 80
SK40-CT32SA-105 32 73 105 85
SK40-CT32SA-120 32 73 120 85
SK40-CT32SA-135 32 73 135 120
SK50-CT16SA-90 16 45 90 65
SK50-CT16SA-105 16 45 105 65
SK50-CT16SA-135 16 45 135 65
SK50-CT20SA-90 20  52  90  80
SK50-CT20SA-105 20  52  105  80
SK50-CT20SA-120 20  52  120  80
SK50-CT20SA-135 20  52  135  80
SK50-CT20SA-165 20  52  165  80
SK50-CT20SA-200 20  52  200  80
SK50-CT20SA-250 20  52  250  80
SK50-CT20SA-300 20  52  300  80
SK50-CT25SA-105 25  61  105  80
SK50-CT25SA-135 25  61  135  80
SK50-CT25SA-165 25  61  165  80
SK50-CT25SA-200 25  61  200  80
SK50-CT25SA-250 25  61  250  80
SK50-CT25SA-300 25  61  300  80
SK50-CT32SA-95 32  73  95  120
 SK50-CT32SA -105 32  73  105  120
SK50-CT32SA-120 32  73  120  120
SK50-CT32SA-135 32  73  135  120
SK50-CT32SA-150 32  73  150  120
SK50-CT32SA-165 32  73  165  120
SK50-CT32SA-200 32  73  200  120
SK50-CT32SA-250 32  73  250  120
SK50-CT32SA-300 32  73  300  120
