Products
Combi Shell Mill Holder
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 30 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

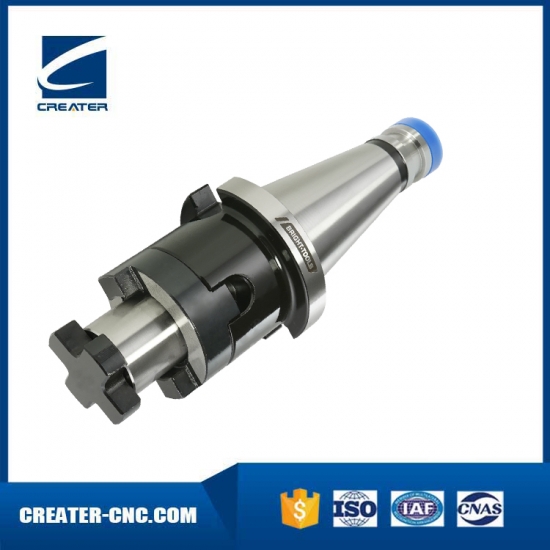

DIN2080 NT Combi Shell Mill Tool Holder DIN6358
Runout: <0.005mm
Taper Torlerabce: <AT3
Surface Treatment: Blackening
Combi Shel Mill Holder Application: for clamping Shell Mill DIN841 and DIN1880 as well as angular milling cutter DIN842 and DIN1830.

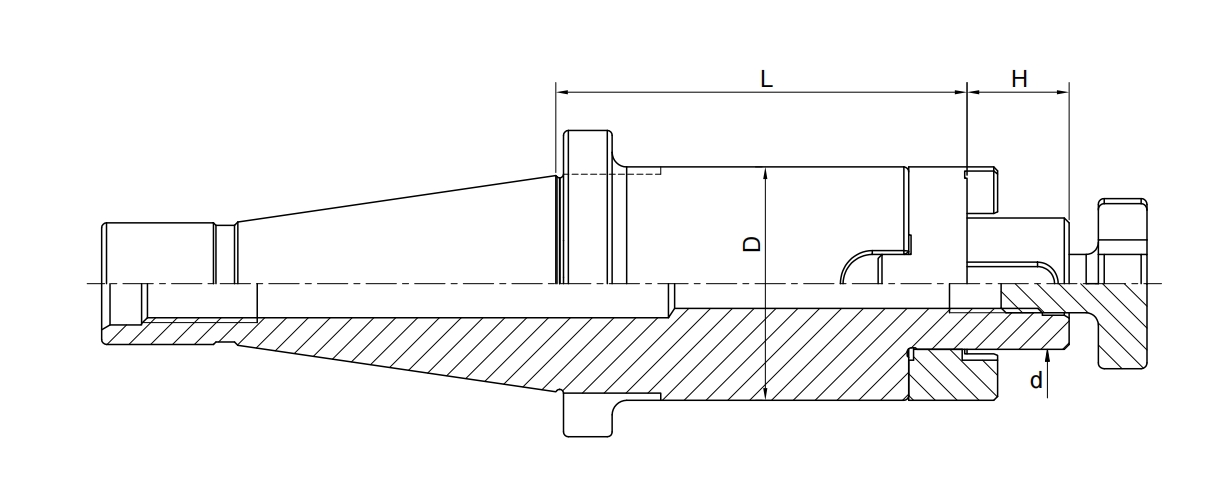

| Size | d | D | L | H |
| NT30-SEMC16-35 | 16 | 32 | 35 | 17 |
| NT30-SEMC22-35 | 22 | 40 | 35 | 19 |
| NT30-SEMC27-35 | 27 | 48 | 35 | 21 |
| NT30-SEMC32-50 | 32 | 58 | 50 | 24 |
| NT40-SEMC16-52(OTT) | 16 | 32 | 52 | 17 |
| NT40-SEMC22-52(OTT) | 22 | 40 | 52 | 19 |
| NT40-SEMC27-52(OTT) | 27 | 48 | 52 | 21 |
| NT40-SEMC32-52(OTT) | 32 | 58 | 52 | 24 |
| NT40-SEMC40-52(OTT) | 40 | 70 | 52 | 27 |
| NT50-SEMC16-55(OTT) | 16 | 32 | 55 | 17 |
| NT50-SEMC22-55(OTT) | 22 | 40 | 55 | 19 |
| NT50-SEMC27-55(OTT) | 27 | 48 | 55 | 21 |
| NT50-SEMC32-55(OTT) | 32 | 58 | 55 | 24 |
| NT50-SEMC40-55(OTT) | 40 | 70 | 55 | 27 |
