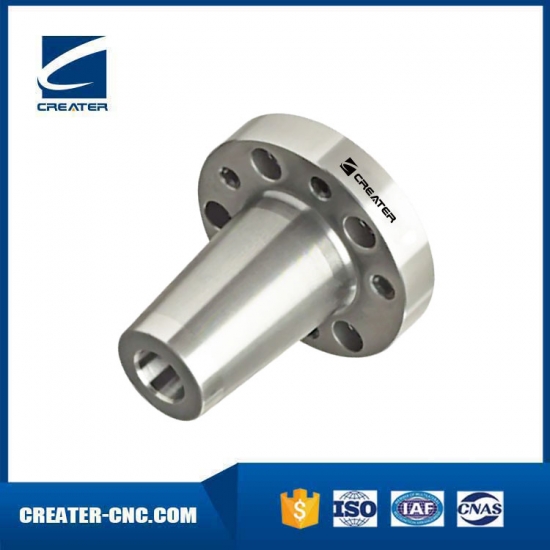

Module Shrink Chuck
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
- Specification
- Simple figure
- Precautions
Module Shrink Chuck with radial and angular alignment and axial tool length adjustment
Module connection sizes in accordance with MN5000-14

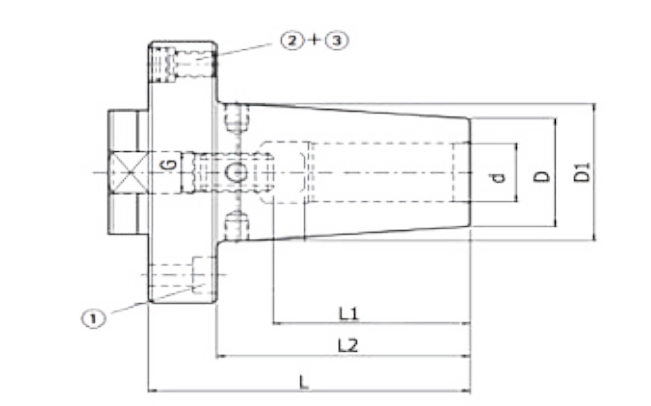

| Size | d | D | D1 | L | L2 | L1 | N | G |
| MOD60-SF06-70 | 6 | 21 | 27 | 70 | 57 | 36 | 10 | M5 |
| MOD60-SF08-70 | 8 | 21 | 27 | 70 | 57 | 36 | 10 | M6 |
| MOD60-SF10-70 | 10 | 24 | 32 | 70 | 57 | 41 | 10 | M8x1 |
| MOD60-SF12-70 | 12 | 24 | 32 | 70 | 57 | 46 | 10 | M10x1 |
| MOD70-SF14-75 | 14 | 27 | 34 | 75 | 60 | 46 | 10 | M10x1 |
| MOD70-SF16-75 | 16 | 27 | 34 | 75 | 60 | 49 | 10 | M12x1 |
| MOD80-SF18-80 | 18 | 33 | 42 | 80 | 63 | 49 | 10 | M12x1 |
| MOD80-SF20-80 | 20 | 33 | 42 | 80 | 63 | 51 | 10 | M16x1 |
| MOD100-SF25-80 | 25 | 44 | 53 | 80 | 59 | 57 | 10 | M16x1 |
| MOD100-SF32-80 | 32 | 44 | 53 | 80 | 59 | 61 | 10 | M16x1 |
