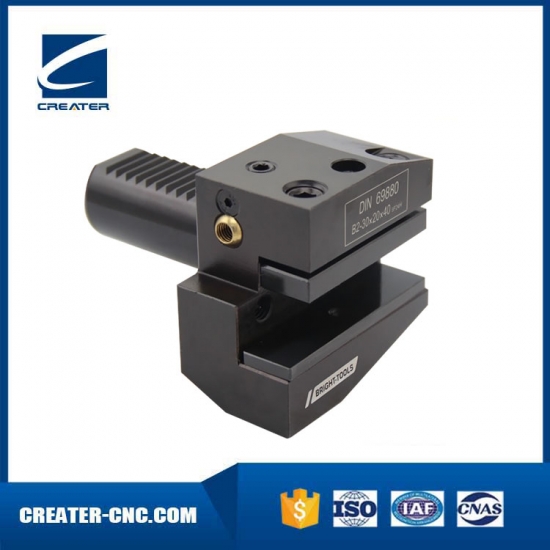

VDI Form B2 Left Hand Short Turning Tool Holder
Applicable Machines: CNC Lathes
Usage: For Turrets with clamping mechanism at 6 O'Clock. When VDI Tool Holder in Turret, coolant nozzle will be located at the outer Bottom.
Radial VDI Tool Holders Static B2 Type (Left-Hand) are available and metric sizes, inch sizes can be made by request.
Our VDI Tool Holders Static B2 Type are cut from solid pretreated material. They are also hardened up to HRC55-60, and then precisely ground to the highest accuracy standards.
Metric
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
B2-16x12x24
16
42
23
5
12
20
22
13
24
B2-16x12x34
16
42
23
5
12
20
22
23
34
B2-20x16x30
20
55
30
7
16/12
25
30
16
30
B2-20x16x40
20
55
30
7
16/12
25
30
26
40
B2-25x16x30
25
55
30
7
16/12
25
30
16
30
B2-25x16x40
25
55
30
7
16/12
25
30
26
40
B2-30x20x40
30
70
35
10
20/16
28
38
22
40
B2-30x20x60
30
70
35
10
20/16
28
38
42
60
B2-40x25x44
40
85
42.5
12.5
25/20
32.5
48
22
44
B2-50x32x55
50
100
50
16
32/25
35
60
30
55
B2-60x32x60
60
125
62.5
16
32/25
42.5
62.5
30
60
B2-80x40x75
80
160
80
20
40/32
55
80
40
75
Inch
Size
d1
b1
b2
b3
h1
h5
h6
l1
l2
B2-20x5/8"x30
20
55
30
7
5/8"
25
30
16
30
B2-30x3/4"x40
30
70
35
10
3/4"
28
38
22
40
B2-40x1"x44
40
85
42.5
12.5
1"
32.5
48
22
44
B2-50x1-1/4"x55
50
100
50
16
1-1/4"
35
60
30
55
B2-60x1-1/4"x60
60
125
62.5
16
1-1/4"
42.5
62.5
30
60
