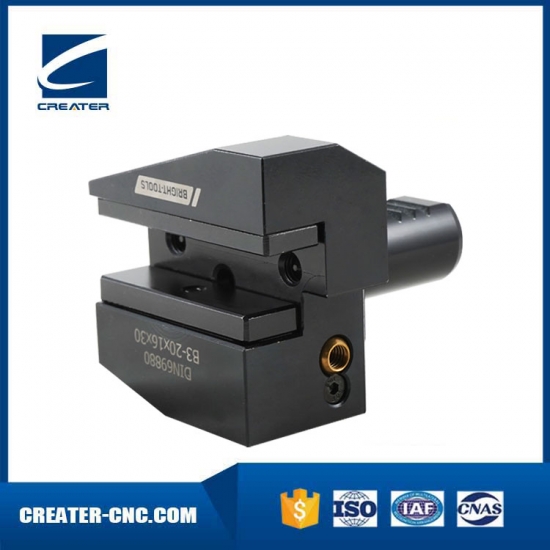

VDI Tool Holders Form B3 Right Hand Short Inverted Turning Tool Holder
Radial VDI Tool Holders Static B3 Type (Right-Hand) are available in metric sizes, inch sizes can be made by request.
Form B3 VDI Tool Holder is for Turrets with clamping mechanism at 12 O'Clock.
When VDI Tool Holder in Turret, coolant nozzle is located at the outer Bottom.
Our Radial B3 Type Tool Holder is cut from solid pretreated material, hardened up to HRC55-60, and then precisely ground to the highest accuracy standards.
Metric | |||||||||

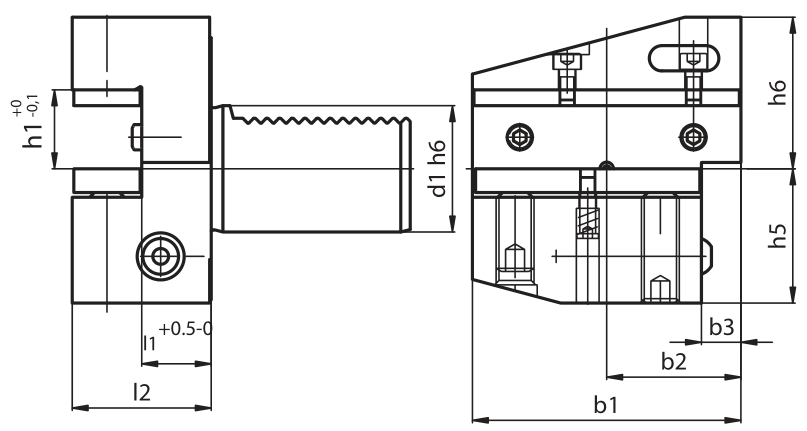

Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 |
B3-16x12x24 | 16 | 42 | 23 | 5 | 12 | 20 | 22 | 13 | 24 |
B3-16x12x34 | 16 | 42 | 23 | 5 | 12 | 20 | 22 | 23 | 34 |
B3-20x16x30 | 20 | 55 | 30 | 7 | 16/12 | 25 | 30 | 16 | 30 |
B3-20x16x40 | 20 | 55 | 30 | 7 | 16/12 | 25 | 30 | 26 | 40 |
B3-25x16x30 | 25 | 55 | 30 | 7 | 16/12 | 25 | 30 | 16 | 30 |
B3-25x16x40 | 25 | 55 | 30 | 7 | 16/12 | 25 | 30 | 26 | 40 |
B3-30x20x40 | 30 | 70 | 35 | 10 | 20/16 | 35 | 38 | 22 | 40 |
B3-30x20x60 | 30 | 70 | 35 | 10 | 20/16 | 35 | 38 | 42 | 60 |
B3-40x25x44 | 40 | 85 | 42.5 | 12.5 | 25/20 | 42.5 | 48 | 22 | 44 |
B3-50x32x55 | 50 | 100 | 50 | 16 | 32/25 | 50 | 60 | 30 | 55 |
B3-60x32x60 | 60 | 125 | 62.5 | 16 | 32/25 | 62.5 | 62.5 | 30 | 60 |
B3-80x40x75 | 80 | 160 | 80 | 20 | 40/32 | 80 | 80 | 40 | 75 |
Inch | |||||||||
Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 |
B3-20x5/8"x30 | 20 | 55 | 30 | 7 | 5/8" | 25 | 30 | 16 | 30 |
B3-30x3/4"x40 | 30 | 70 | 35 | 10 | 3/4" | 35 | 38 | 22 | 40 |
B3-40x1"x44 | 40 | 85 | 42.5 | 12.5 | 1" | 42.5 | 48 | 22 | 44 |
B3-50x1-1/4"x55 | 50 | 100 | 50 | 16 | 1-1/4" | 50 | 60 | 30 | 55 |
B3-60x1-1/4"x60 | 60 | 125 | 62.5 | 16 | 1-1/4" | 62.5 | 62.5 | 30 | 60 |
