Radial Holder Form B1
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao, Tianjin |
| Color: | Blackening |
| Lead Time: | 40 Days |
| Payment: | TT in Advance |
- Specification

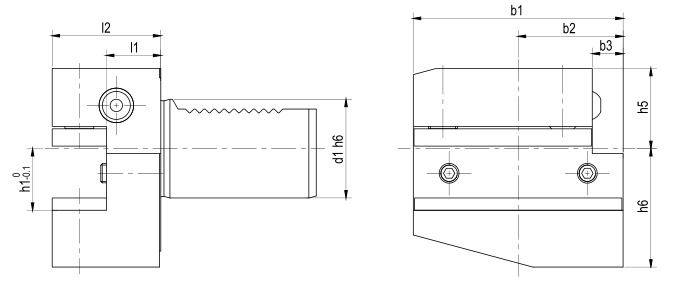

- Simple figure
- Precautions

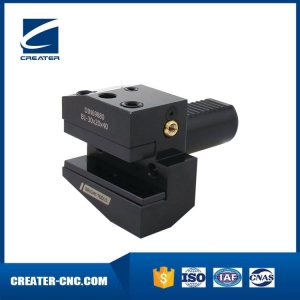

Radial Tool Holder Form B1 Right, Short
Applicable Machines: CNC Lathes
Delivery: with adjustable spray nozzle and shim
Usage: mainly for external face machining.
| Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 |
| B1-16x12x24 | 16 | 42 | 23 | 5 | 12 | 20 | 22 | 13 | 24 |
| B1-16x12x34 | 16 | 42 | 23 | 5 | 12 | 20 | 22 | 23 | 34 |
| B1-20x16x30 | 20 | 55 | 30 | 7 | 16/12 | 25 | 30 | 16 | 30 |
| B1-20x16x40 | 20 | 55 | 30 | 7 | 16/12 | 25 | 30 | 26 | 40 |
| B1-25x16x30 | 25 | 55 | 30 | 7 | 16/12 | 25 | 30 | 16 | 30 |
| B1-25x16x40 | 25 | 55 | 30 | 7 | 16/12 | 25 | 30 | 26 | 40 |
| B1-30x20x40 | 30 | 70 | 35 | 10 | 20/16 | 28 | 38 | 22 | 40 |
| B1-30x20x60 | 30 | 70 | 35 | 10 | 20/16 | 28 | 38 | 42 | 60 |
| B1-40x25x44 | 40 | 85 | 42.5 | 12.5 | 25/20 | 32.5 | 48 | 22 | 44 |
| B1-50x32x55 | 50 | 100 | 50 | 16 | 32/25 | 35 | 60 | 30 | 55 |
| B1-60x32x60 | 60 | 125 | 62.5 | 16 | 32/25 | 42.5 | 62.5 | 30 | 60 |
| B1-80x40x75 | 80 | 160 | 80 | 20 | 40/32 | 55 | 80 | 40 | 75 |
