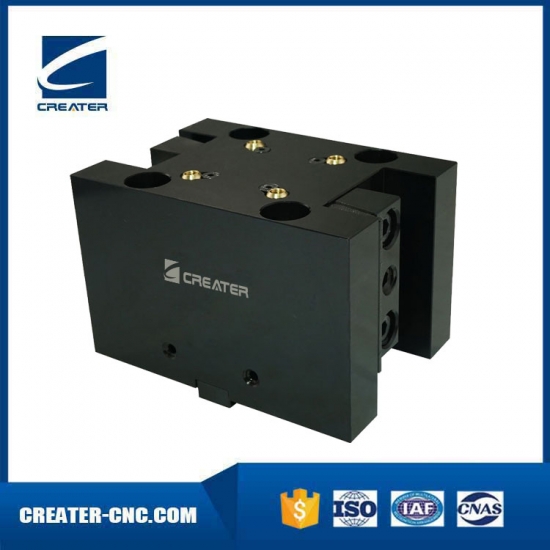

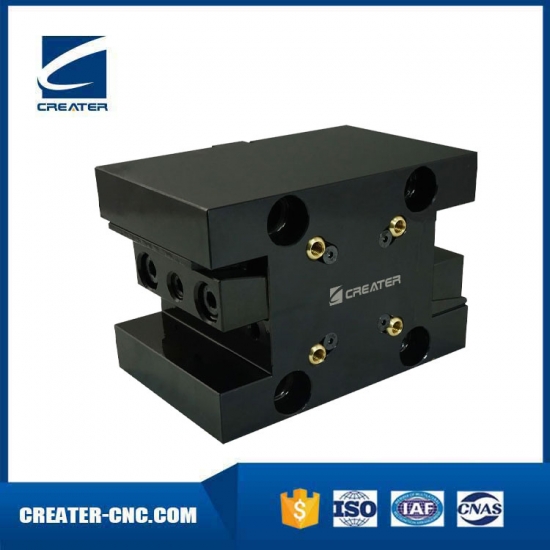

BMT Double OD Turning Tool Holder
contact now
| Brand: | creater |
|---|
- Specification

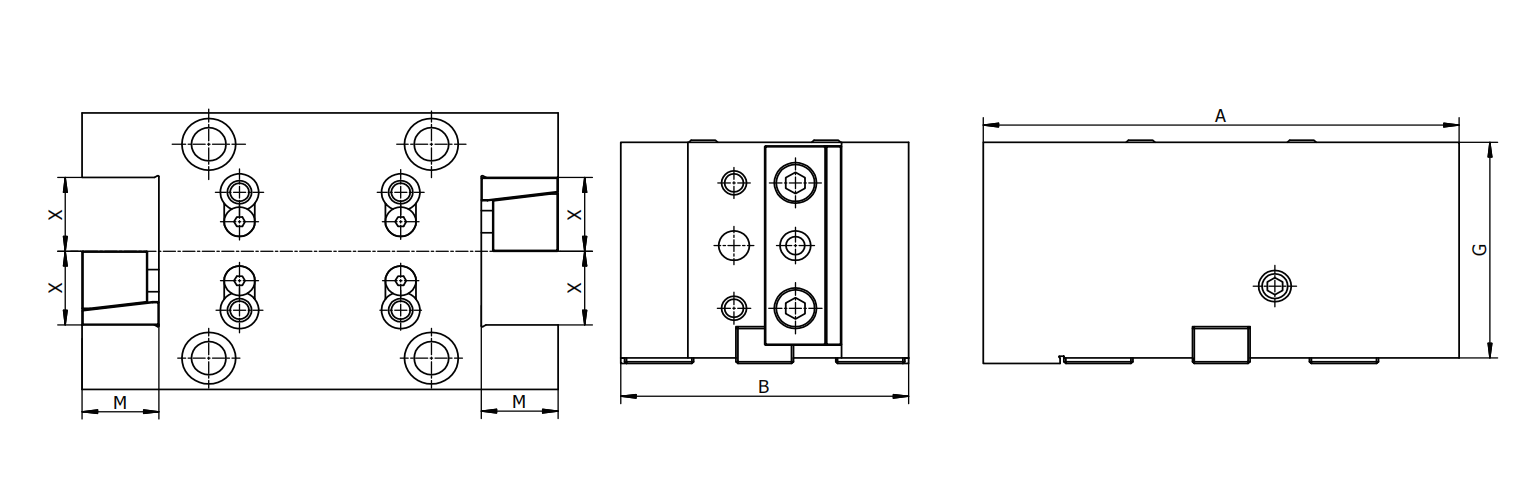

- Simple figure
- Precautions
| SIZE | X | A | B | C | M |
| BMT45-OD20D-60 | 20 | 124 | 75 | 60 | |
| BMT55-OD20D-65 | 20 | 152 | 85 | 65 | |
| BMT55-OD25D-65 | 25 | 152 | 85 | 65 | |
| BMT65-OD25D-75 | 25 | 157 | 96 | 75 | |
| BMT75-OD32D-85 | 32 | 185 | 112 | 85 | |
| BMT45-OD19.05D-60 | 19.05 | 124 | 75 | 60 | |
| BMT55-OD19.05D-65 | 19.05 | 152 | 85 | 65 | |
| BMT55-OD25.4D-65 | 25.4 | 152 | 85 | 65 | |
| BMT65-OD25.4D-75 | 25.4 | 149 | 96 | 75 | |
| BMT75-OD31.75D-85 | 31.75 | 185 | 112 | 85 |
