BMT Facing Tool Holder
/uploadfile/202511/03/3256a3858fdce0ab5ab4ec141387e6b3_square.jpg /uploadfile/202511/03/8874eaf64d9bec82a0af8b75e6ded9ed_square.jpg

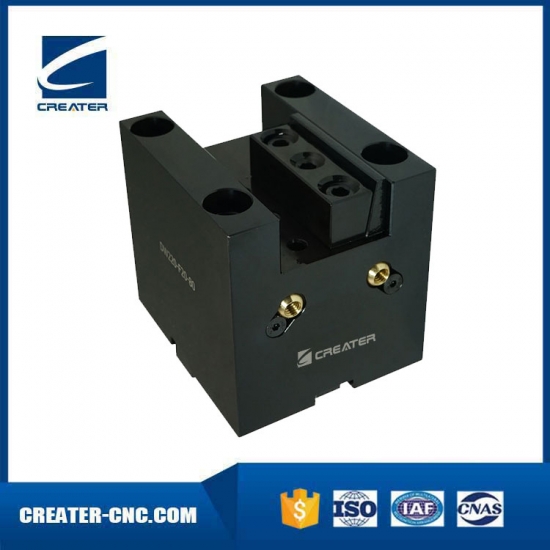

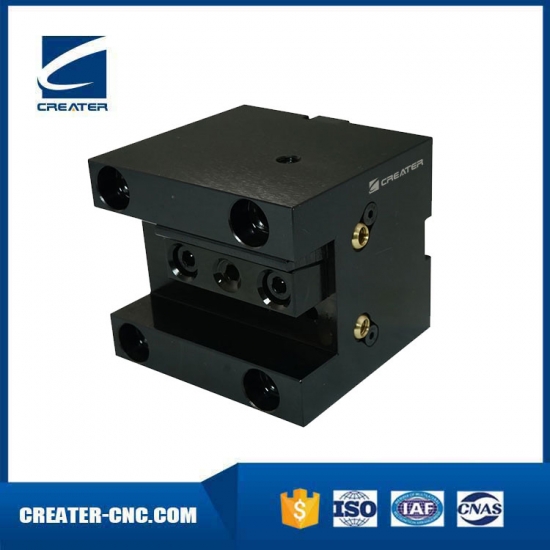

BMT Facing Tool Holder
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

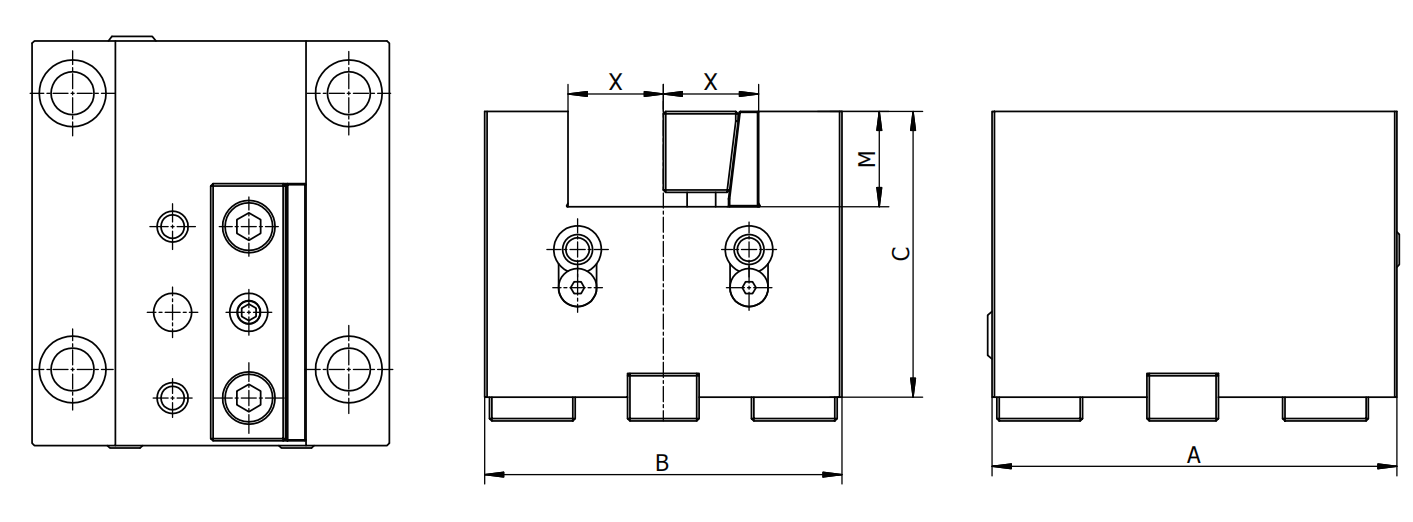

SIZE X A B C
BMT45-F20-65 20 86 75 65
BMT45-F20-80 20 86 75 80
BMT55-F20-70 20 95 85 70
BMT55-F25-70 25 105 85 70
BMT65-F25-82.5 25 100 96 82.5
BMT65-F25-120 25 100 96 120
BMT75-F25-70 25 120 112 70
BMT75-F25-135 25 120 112 135
BMT75-F25-122 25 120 112 122
BMT75-F32-100 32 120 112 100
BMT75-F32-122 32 120 112 122
BMT85-F32-105 32 168.5 130 105
BMT85-F32-140 32 168.5 130 140
BMT45-F19.05-65 19.05 86 75 65
BMT45-F19.05-80 19.05 86 75 80
BMT55-F19.05-70 19.05 95 85 70
BMT55-F25.4-70 25.4 105 85 70
BMT65-F25.4-82.5 25.4 100 96 82.5
BMT65-F25.4-120 25.4 100 96 120
BMT75-F25.4-70 25.4 120 112 70
BMT75-F25.4-135 25.4 120 112 135
BMT75-F25.4-122 25.4 120 112 122
BMT75-F31.75-100 31.75 120 112 100
BMT75-F31.75-122 31.75 120 112 122
BMT85-F31.75-105 31.75 168.5 130 105
BMT85-F31.75-140 31.75 168.5 130 140
