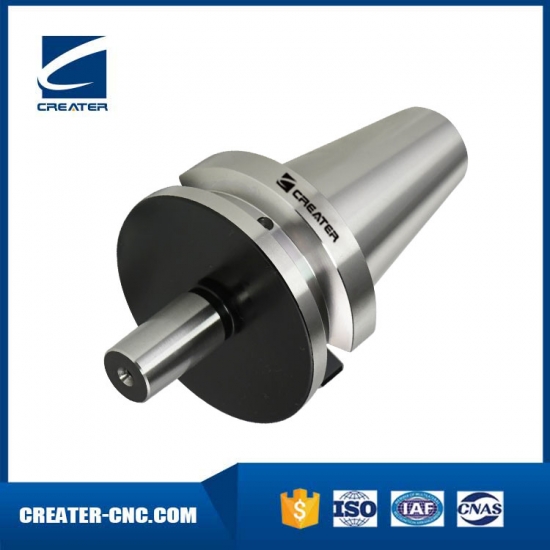

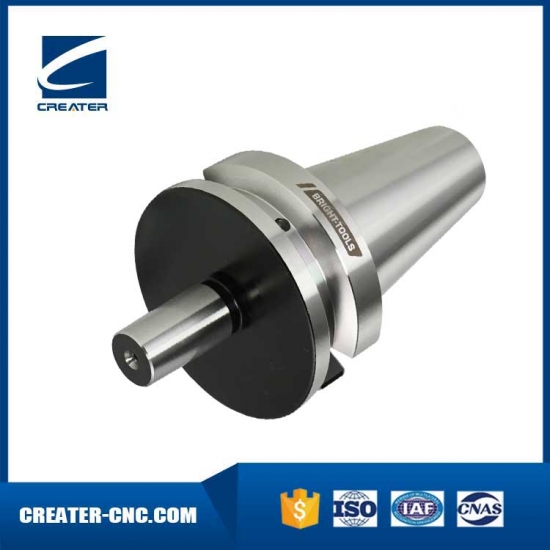

BT Drill Chuck Arbor
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao |
| Color: | Blackening |
| Lead Time: | 5-30 Days |
| Payment: | TT |
- Specification
- Simple figure
- Precautions
BT Drill Arbor
7:24 Taper:AT3
Accuracy: 0.005mm
Coolant: AD, ADB
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893

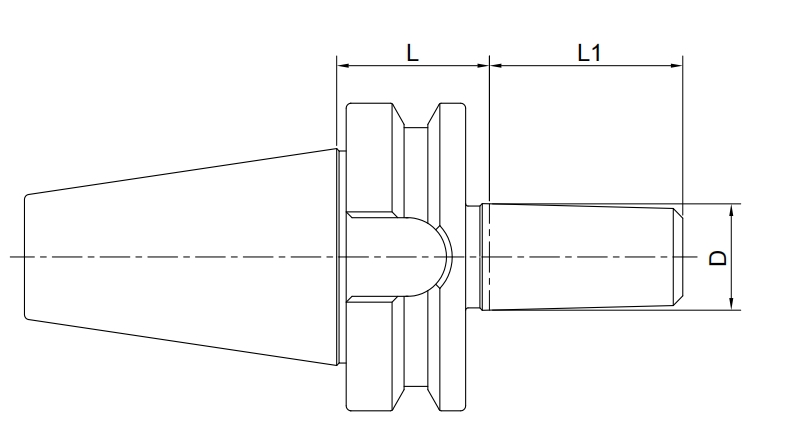

| Size | D | L | L1 |
| BT30-B12-25 | B12 | 25 | 18.5 |
| BT30-B16-25 | B16 | 25 | 24 |
| BT40-B12-32 | B12 | 32 | 18.5 |
| BT40-B16-32 | B16 | 32 | 24 |
| BT40-B18-32 | B18 | 32 | 32 |
| BT40-B22-32 | B22 | 32 | 40.5 |
| BT50-B16-45 | B16 | 45 | 24 |
| BT50-B18-45 | B18 | 45 | 32 |
| BT50-B22-45 | B22 | 45 | 40.5 |
