MTA Morse Taper Adapter DIN6383
contact now
| Product Origin: | China |
|---|---|
| Brand: | creater |
| Shipping Port: | qingdao |
| Lead Time: | 20-30 |
| Payment: | TT |
- Specification
- Simple figure
- Precautions

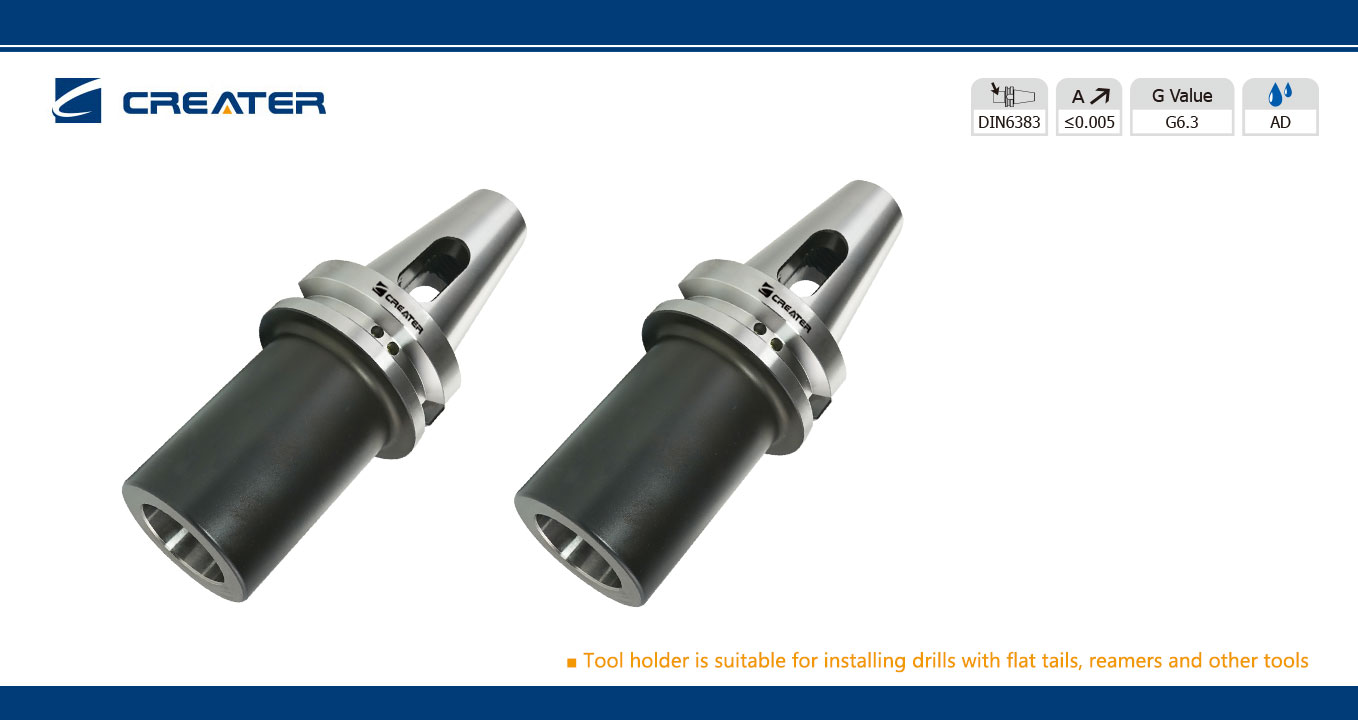

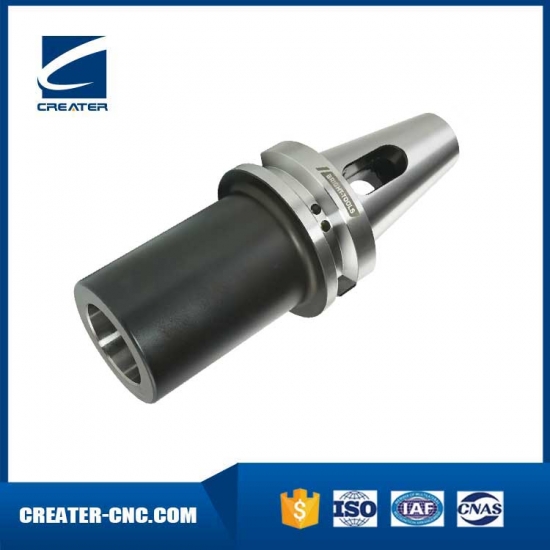

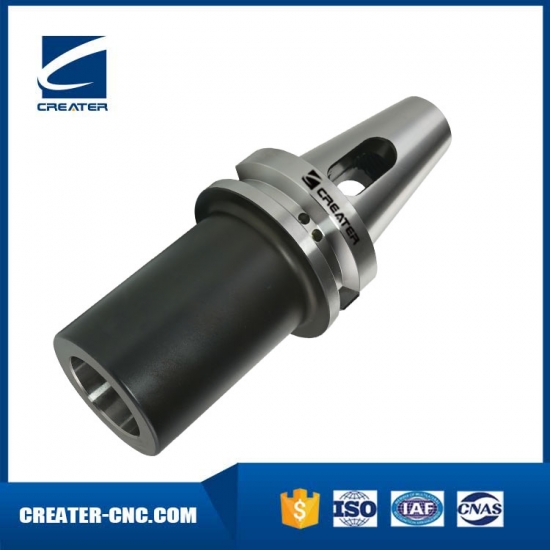

MTA Morse Taper Adapter DIN6383
7:24 Taper:AT3
Accuracy: 0.005mm
Coolant: AD, ADB
Balancing : G6.3/15000rpm, G2.5/25000rpm
standard: MAS403BT, DIN69871, DIN2080, CAT, HSK69893

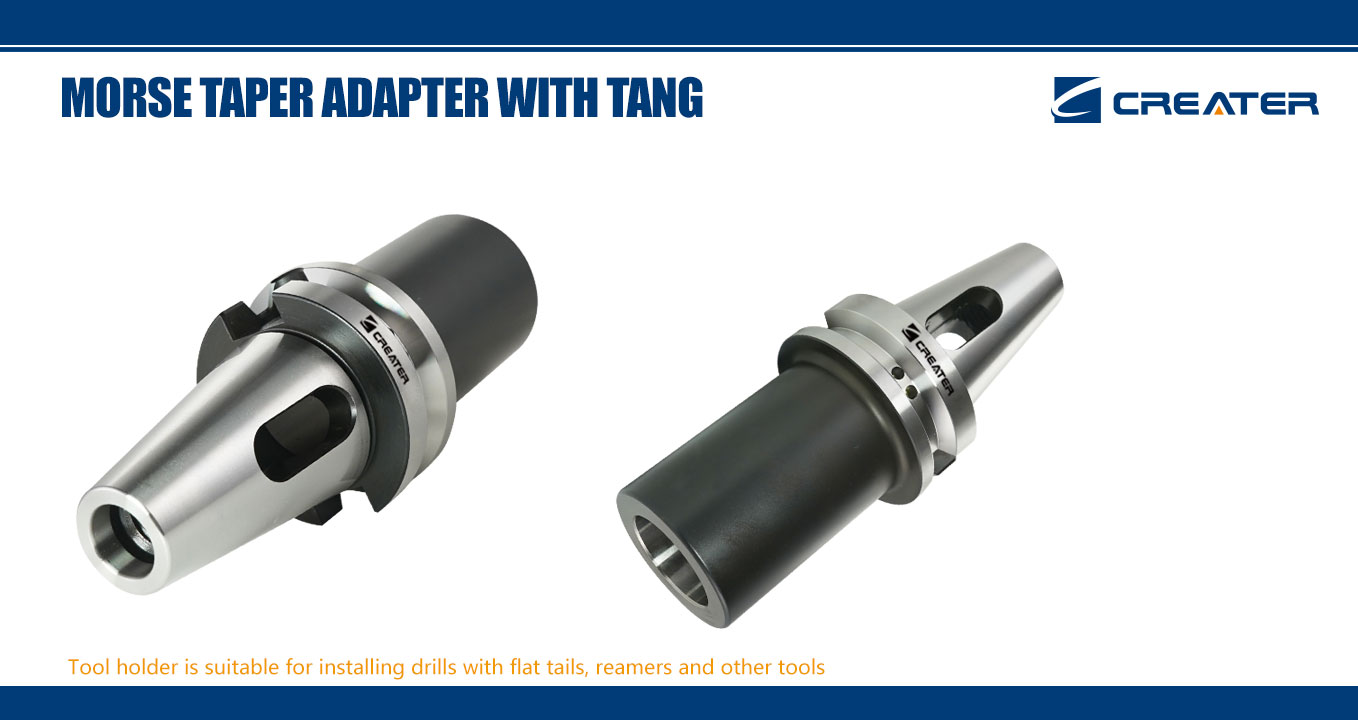

Use: For holding tools with Morse taper and tang according to DIN228-1

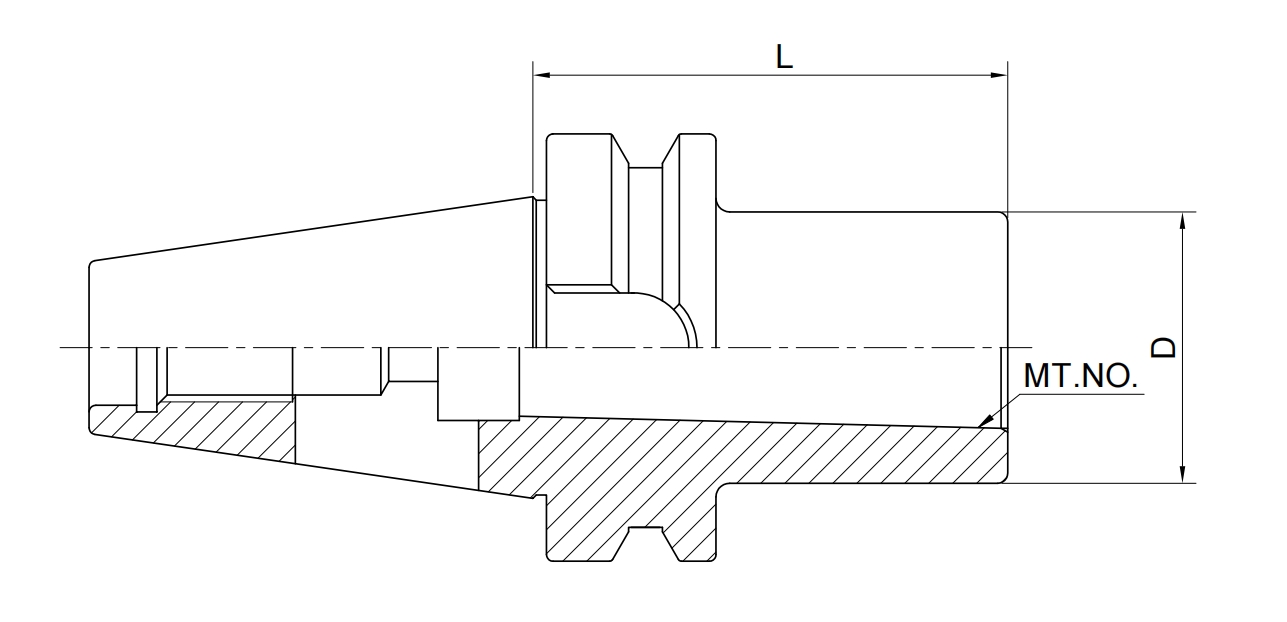

| Size | MT. NO. | D | L |
| BT30-MTA1-45 | 1 | 25 | 45 |
| BT30-MTA2-60 | 2 | 32 | 60 |
| BT30-MTA3-75 | 3 | 40 | 75 |
| BT40-MTA1-50 | 1 | 25 | 50 |
| BT40-MTA2-50 | 2 | 32 | 50 |
| BT40-MTA3-70 | 3 | 40 | 70 |
| BT40-MTA4-95 | 4 | 48 | 95 |
| BT50-MTA1-45 | 1 | 25 | 45 |
| BT50-MTA2-60 | 2 | 32 | 60 |
| BT50-MTA3-65 | 3 | 40 | 65 |
| BT50-MTA3-180 | 3 | 40 | 180 |
| BT50-MTA4-95 | 4 | 48 | 95 |
| BT50-MTA4-180 | 4 | 48 | 180 |
| BT50-MTA5-105 | 5 | 63 | 105 |
