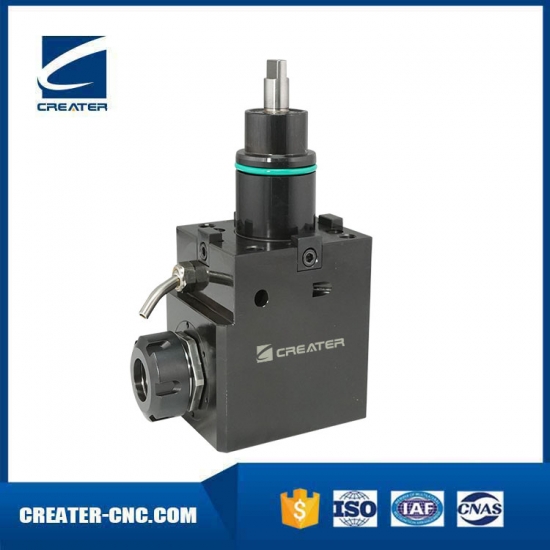

BMT Radial Driven Head, DIN 1809
contact now
| Brand: | creater |
|---|
- Specification

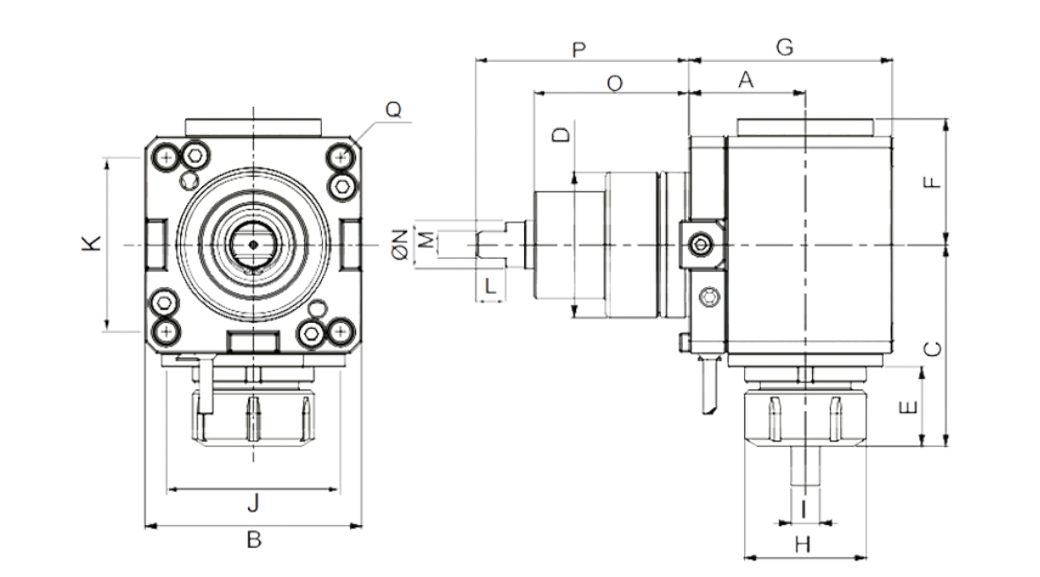

- Simple figure
- Precautions
| Size | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
| BMT45E-DRER25-65 DIN1809 | 65 | 75 | 87.6 | 45 | 26.6 | 50 | 99 | 42 | ER25 | 58 | 58 | 8.5 | 6 | 14 | 60 | 84 | M8 |
| BMT55-DRER25-60 DIN1809 | 60 | 85 | 78.5 | 55 | 27.5 | 50 | 86 | 42 | ER25 | 64 | 64 | 10 | 8 | 17 | 75 | 103.5 | M10 |
| BMT55E-DRER25-70 DIN1809 | 70 | 85 | 92.2 | 55 | 27.1 | 64.2 | 108 | 42 | ER25 | 64 | 64 | 10 | 8 | 20 | 75 | 103 | M10 |
| BMT55-DRER25-85 DIN1809 | 85 | 85 | 78.5 | 55 | 27.5 | 50 | 86 | 42 | ER25 | 64 | 64 | 10 | 8 | 17 | 75 | 103.5 | M10 |
| BMT65E-DRER32-72 DIN1809 | 72 | 94 | 108.3 | 65 | 38.3 | 66 | 110 | 50 | ER32 | 73 | 70 | 14 | 10 | 18 | 83 | 112 | M12 |
| BMT65-DRER32-100 DIN1809 | 100 | 94 | 92 | 65 | 36 | 54.5 | 136 | 50 | ER32 | 73 | 70 | 14 | 10 | 20 | 81 | 111.5 | M12 |
| BMT75-DRER40-60 DIN1809 | 60 | 112 | 104 | 75 | 41 | 65 | 105 | 63 | ER40 | 90 | 90 | 15 | 14 | 23 | 80 | 110 | M12 |
| BMT75-DRER40-90 DIN1809 | 90 | 112 | 104 | 75 | 41 | 65 | 135 | 63 | ER40 | 90 | 90 | 15 | 14 | 23 | 80 | 110 | M12 |
| BMT75-DRER40-125 DIN1809 | 125 | 112 | 104 | 75 | 41 | 65 | 170 | 63 | ER40 | 90 | 90 | 15 | 14 | 23 | 80 | 110 | M12 |
| BMT85-DRER40-110 DIN1809 | 110 | 125 | 134.8 | 85 | 54.3 | 75.5 | 160 | 78 | ER50 | 100 | 100 | 20 | 16 | 27.5 | 96 | 136 | M12 |
