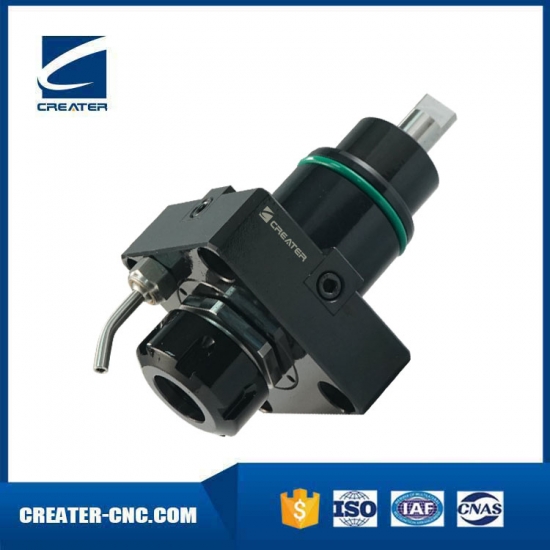

BMT Axial Driven Head, DIN 1809
contact now
| Brand: | creater |
|---|
- Specification

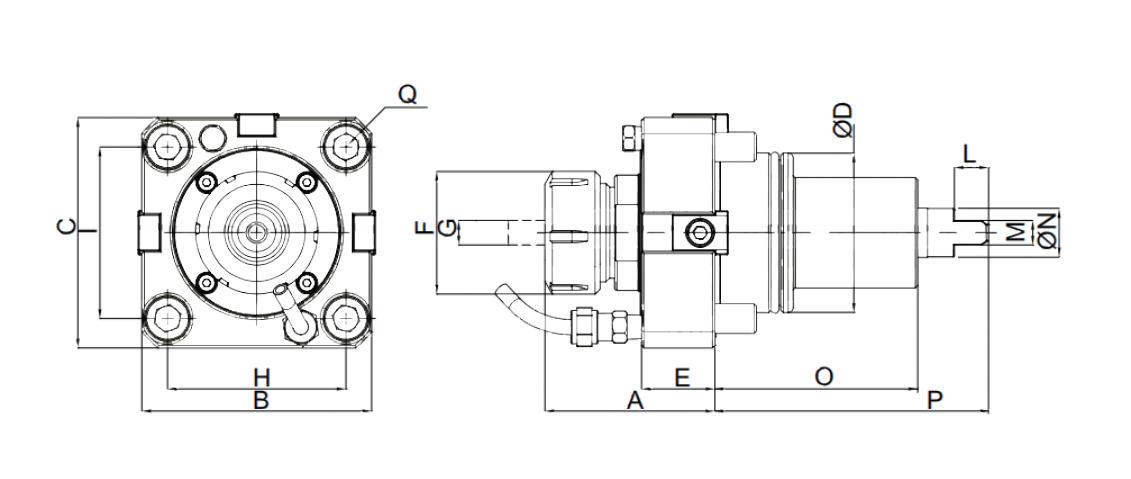

- Simple figure
- Precautions
| Size | A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q |
| BMT45E-DAER25-75E DIN1809 | 73.1 | 75 | 75 | 45 | 46.5 | 42 | ER25 | 58 | 58 | 8.5 | 6 | 14 | 60 | 74.5 | M8 |
| BMT55E-DAER25-78E DIN1809 | 76.7 | 85 | 85 | 55 | 48.8 | 42 | ER25 | 64 | 64 | 11 | 8 | 20 | 75 | 104.2 | M10 |
| BMT65E-DAER32-78E DIN1809 | 76.6 | 94 | 94 | 65 | 43.8 | 50 | ER32 | 73 | 70 | 14 | 10 | 20 | 83 | 112 | M12 |
| BMT75-DAER40-78 DIN1809 | 78 | 112 | 112 | 75 | 30 | 63 | ER40 | 90 | 90 | 15 | 14 | 23 | 80 | 110 | M12 |
| BMT85-DAER50-108 DIN1809 | 108 | 125 | 125 | 85 | 44 | 78 | ER50 | 100 | 100 | 20 | 16 | 27.5 | 96 | 136 | M12 |
