Products

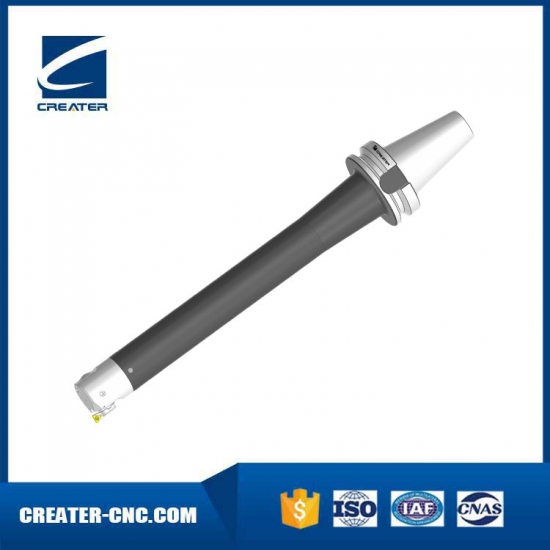

Damping Finishing Boring Tool Holder
/uploadfile/202505/17/f838fbad0e1845c1907b32fe4b7ac64e_square.jpg
Damping Finishing Boring Tool Holder
Brand: creater
contact now
  • Specification
  • Simple figure
  • Precautions

Size Insert seat D DI D2 H L LI Insert
BT50-DF2136-130 F1-1 21-26 20 30 130 160 198 TP0802
F1-2 25-31 20 30 130 160 198 TP0802
F1-3 30-36 20 30 130 160 198 TP0802
BT50-DF2136-170 F1-1 21-26 20 30 170 200 238 TP0802
F1-2 25-31 20 30 170 200 238 TP0802
F1-3 30-36 20 30 170 200 238 TP0802
BT50-DF2647-165 F2-1 26-33 25 35 165 200 238 TP0802
F2-2 32-40 25 35 165 200 238 TP0802
F2-3 39-47 25 35 165 200 238 TP0802
BT50-DF2647-215 F2-1 26-33 25 35 215 250 288 TP0802
F2-2 32-40 25 35 215 250 288 TP0802
F2-3 39-47 25 35 215 250 288 TP0802
BT50-DF3360-210 F3-1 33-42 32 45 210 256 294 TP0802
F3-2 41-51 32 45 210 256 294 TP0802
F3-3 50-60 32 45 210 256 294 TP0802
BT50-DF3360-275 F3-1 33-42 32 45 275 320 358 TP0802
F3-2 41-51 32 45 275 320 358 TP0802
F3-3 50-60 32 45 275 320 358 TP0802
BT50-DF4174-260 F4-1 41-54 40 55 260 320 358 TC1102
F4-2 50-63 40 55 260 320 358 TC1102
F4-3 61-71 40 55 260 320 358 TC1102
BT50-DF4174-340 F4-1 41-54 40 55 340 400 438 TC1102
F4-2 50-63 40 55 340 400 438 TC1102
F4-3 61-71 40 55 340 400 438 TC1102
BT50-DF5395-325 F5-1 53-70 50 65 325 400 438 TC1102
F5-2 65-82 50 65 325 400 438 TC1102
F5-3 78-95 50 65 325 400 438 TC1102
BT50-DF5395-425 F5-1 53-70 50 65 425 500 538 TC1102
F5-2 65-82 50 65 425 500 538 TC1102
F5-3 78-95 50 65 425 500 538 TC1102
BT50-DF68150-420 F6-1 68-100 64 80 420 512 550 TC1102
F6-2 94-126 64 80 420 512 550 TC1102
F6-3 118-150 64 80 420 512 550 TC1102
BT50-DF68150-550 F6-1 68-100 64 80 550 640 678 TC1102
F6-2 94-126 64 80 550 640 678 TC1102
F6-3 118-150 64 80 550 640 678 TC1102
BT50-DF100203-455 F6-1 100-203 70 85 455 560 598 TC1102
F6-2 126-179 70 85 455 560 598 TC1102
F6-3 150-203 70 85 455 560 598 TC1102
BT50-DF100203-595 F6-1 100-203 70 85 595 700 738 TC1102
F6-2 126-179 70 85 595 700 738 TC1102
F6-3 150-203 70 85 595 700 738 TC1102
