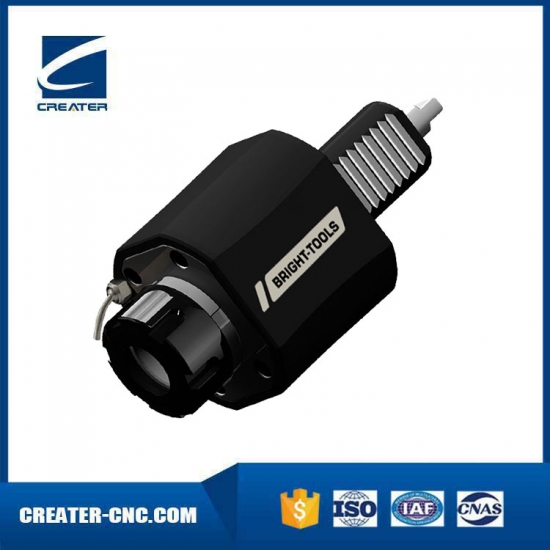

VDI Axial Driven Head, DIN 1809
contact now
| Brand: | creater |
|---|
- Specification

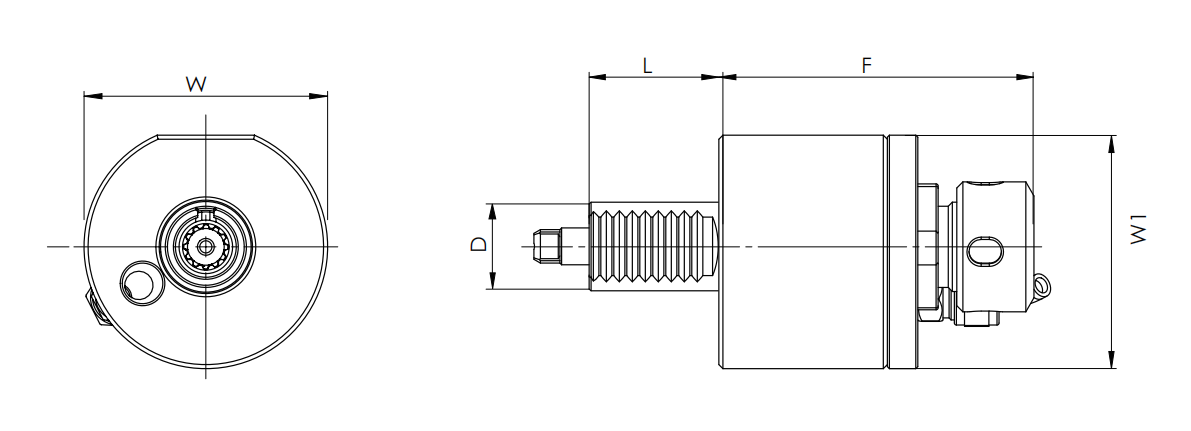

- Simple figure
- Precautions
| Size | VDI | Collet | F | L | W | W1 | Nm | RPM | Internal Cooling | I(rev.) |
| VDI30-DAER25-87 DIN1809 | 30 | ER25 | 87 | 45 | 64 | 68 | 28 | 6000 | no | 1:1 |
| VDI30-DAER25K-87 DIN1809 | 30 | ER25 | 87 | 45 | 64 | 68 | 28 | 6000 | yes | 1:1 |
| VDI40-DAER25-105 DIN1809 | 40 | ER25 | 105 | 53 | 80 | 86 | 50 | 6000 | no | 1:1 |
| VDI40-DAER25K-105 DIN1809 | 40 | ER25 | 105 | 53 | 80 | 86 | 50 | 6000 | yes | 1:1 |
| VDI40-DAER32-108 DIN1809 | 40 | ER32 | 108 | 53 | 80 | 86 | 50 | 6000 | no | 1:1 |
| VDI40-DAER32K-108 DIN1809 | 40 | ER32 | 108 | 53 | 80 | 86 | 50 | 6000 | yes | 1:1 |
| VDI40-DAER32-95 DIN1809 | 40 | ER32 | 95 | 53 | 80 | 86 | 50 | 6000 | no | 1:1 |
| VDI40-DAER32K-95 DIN1809 | 40 | ER32 | 95 | 53 | 80 | 86 | 50 | 6000 | yes | 1:1 |
