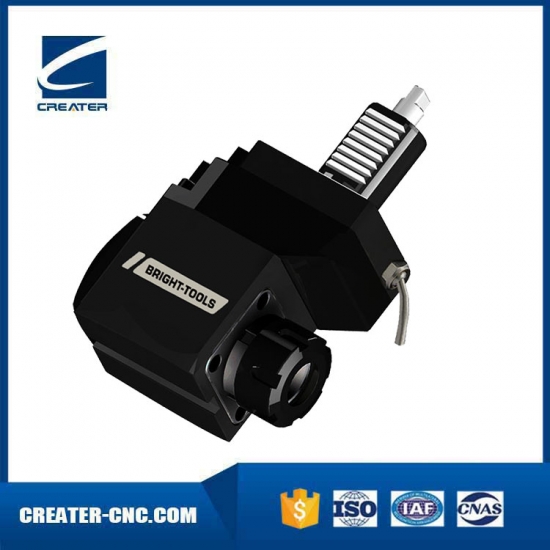

VDI Radial Driven Head, Offset, DIN 1809
contact now
| Brand: | creater |
|---|
- Specification

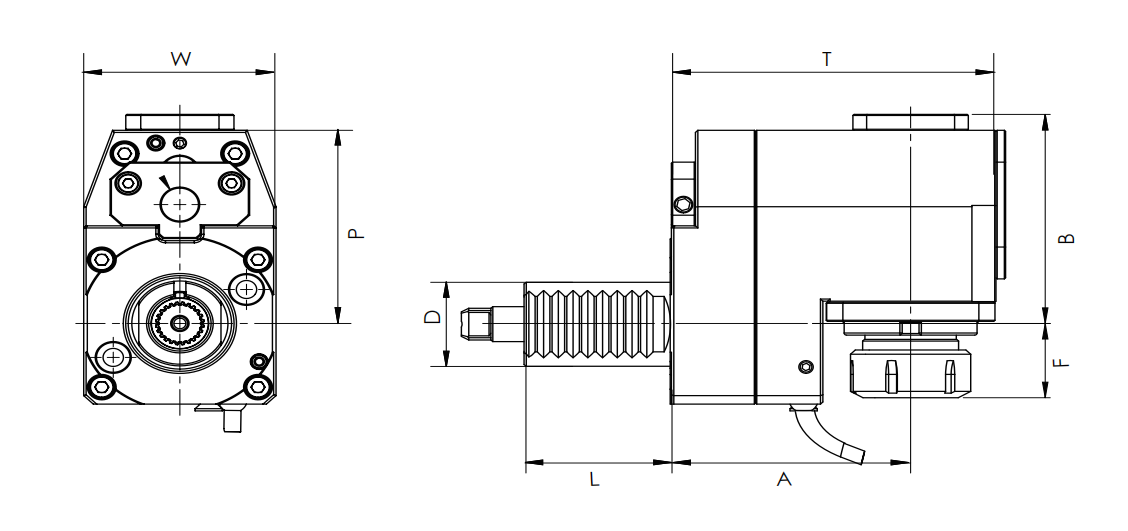

- Simple figure
- Precautions
| Size | VDI | Collet | A | B | F | L | P | T | W | Nm | RPM | Cooling | I(rev.) |
| VDI30-DORER25-75-40 DIN1809 | 30 | ER25 | 75 | 71 | 40 | 45 | 48 | 101 | 64 | 28 | 6000 | no | 1:1 |
| VDI30-DORER25K-75-40 DIN1809 | 30 | ER25 | 75 | 74 | 40 | 45 | 48 | 101 | 64 | 28 | 6000 | yes | 1:1 |
| VDI40-DORER25-120-37 DIN1809 | 40 | ER25 | 120 | 92 | 37 | 53 | 71 | 120 | 75 | 60 | 4000 | no | 1:1 |
| VDI40-DORER25K-120-37 DIN1809 | 40 | ER25 | 120 | 95 | 37 | 53 | 71 | 120 | 75 | 60 | 4000 | yes | 1:1 |
| VDI40-DORER32-120-41 DIN1809 | 40 | ER32 | 120 | 92 | 41 | 53 | 71 | 120 | 75 | 60 | 4000 | no | 1:1 |
| VDI40-DORER32K-120-41 DIN1809 | 40 | ER32 | 120 | 95 | 41 | 53 | 71 | 120 | 75 | 60 | 4000 | yes | 1:1 |
