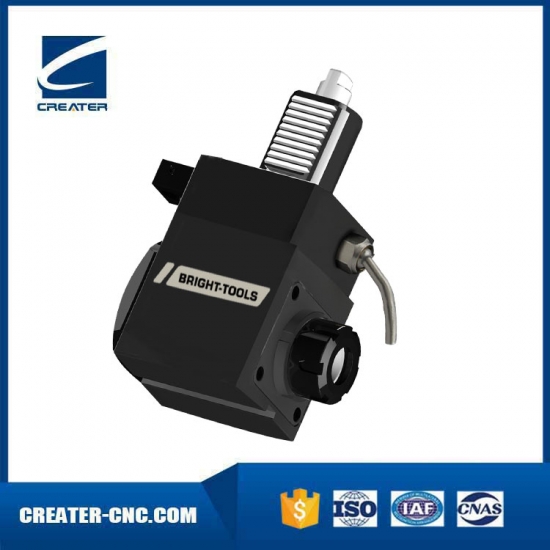

VDI Radial Driven Head, DIN 1809
/uploadfile/202511/06/ce898f5407a40107c607a7718caa939c_square.jpg
VDI Radial Driven Head, DIN 1809
Brand: creater
contact now
  • Specification

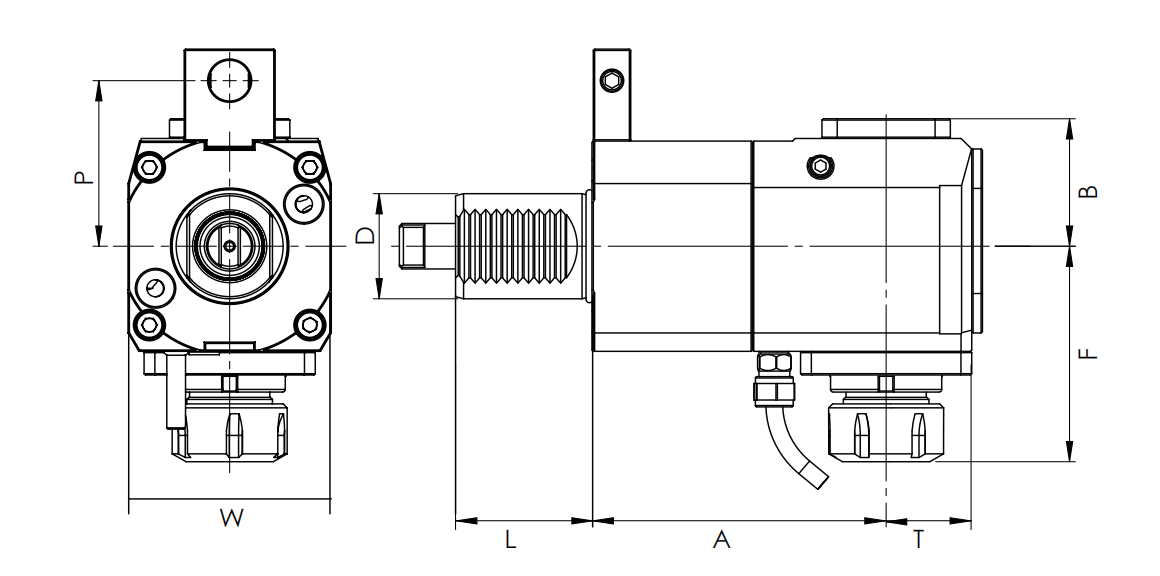

  • Simple figure
  • Precautions



Size VDI Collet A B F L P T W Nm RPM Internal Cooling  I(rev.) Direction
 VDI30-DRER25-55 DIN1809 30 ER25 55 48 63 45 48 29 64 28 6000 no 1:1 right
 VDI30-DRER25K-55 DIN1809 30 ER25 55 51 63 45 48 29 64 28 6000 yes 1:1 right
 VDI40-DRER25-80 DIN1809 40 ER25 80 59 70 53 71 36 75 50 6000 no 1:1 right
 VDI40-DRER25K-80 DIN1809 40 ER25 80 62 70 53 71 36 75 50 6000 yes 1:1 right
 VDI40-DRER32-80 DIN1809 40 ER32 80 59 74 53 71 36 75 50 6000 no 1:1 right
 VDI40-DRER32K-80 DIN1809 40 ER32 80 62 74 53 71 36 75 50 6000 yes 1:1 right
 VDI40-DRER25-100 DIN1809 40 ER25 100 59 70 53 - 36 75 50 6000 no 1:1 left
 VDI40-DRER25K-100 DIN1809 40 ER25 100 62 70 53 - 36 75 50 6000 yes 1:1 left
 VDI40-DRER32-100 DIN1809 40 ER32 100 59 74 53 - 36 75 50 6000 no 1:1 left
 VDI40-DRER32K-100 DIN1809 40 ER32 100 62 74 53 - 36 75 50 6000 yes 1:1 left
