VDI Blank From A2
contact now
| Product Origin: | Dezhou, China |
|---|---|
| Brand: | creater |
| Shipping Port: | Qingdao, China |
| Color: | Blackening |
| Lead Time: | 45 Days |
- Specification
- Simple figure
- Precautions

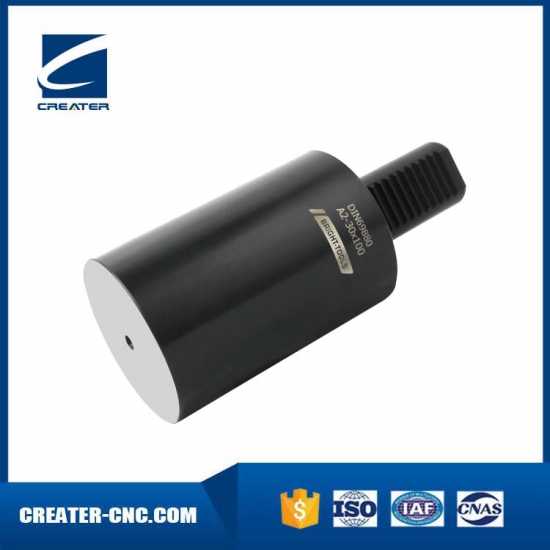

Round VDI Tool Holder Blanks
Applicable Machines: CNC Laths and Turning Centers
Usage: to make special VDI30 VDI40 AND VDI50 Tool Holders
Sizes can be made by request.

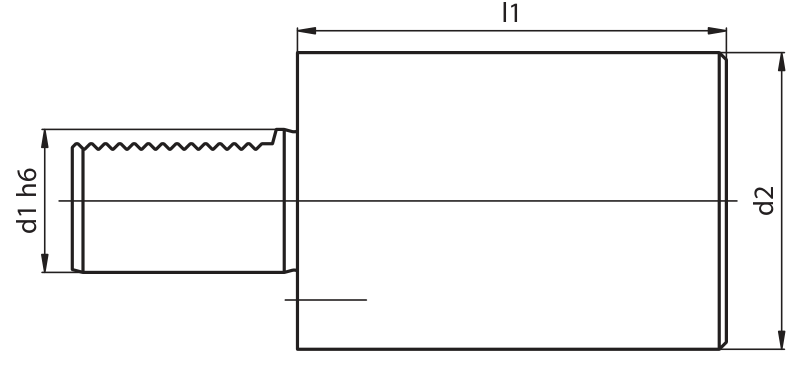

| Size | d1 | d2 | l1 |
| A2-16x60 | 16 | 40 | 60 |
| A2-20x70 | 20 | 50 | 70 |
| A2-25x80 | 25 | 58 | 80 |
| A2-25x200 | 25 | 58 | 200 |
| A2-30x100 | 30 | 68 | 100 |
| A2-30x240 | 30 | 68 | 240 |
| A2-40x120 | 40 | 83 | 120 |
| A2-40x320 | 40 | 83 | 320 |
| A2-50x135 | 50 | 98 | 135 |
| A2-50x400 | 50 | 98 | 400 |
| A2-60x150 | 60 | 123 | 150 |
| A2-60x480 | 60 | 123 | 480 |
| A2-80x500 | 80 | 158 | 500 |
