HSK･T Boring Bar Holder
/uploadfile/202409/21/157c07bf115dbce22ac1d181dc5a327c_square.jpg /uploadfile/202409/21/90157f68b17a4952cc182d88f6d8cbba_square.jpg /uploadfile/202308/16/37db61d9fa0992f7ad86831d3d666319_square.jpg

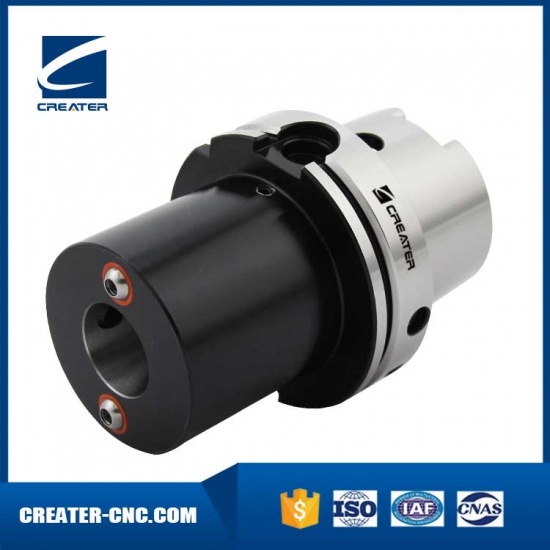

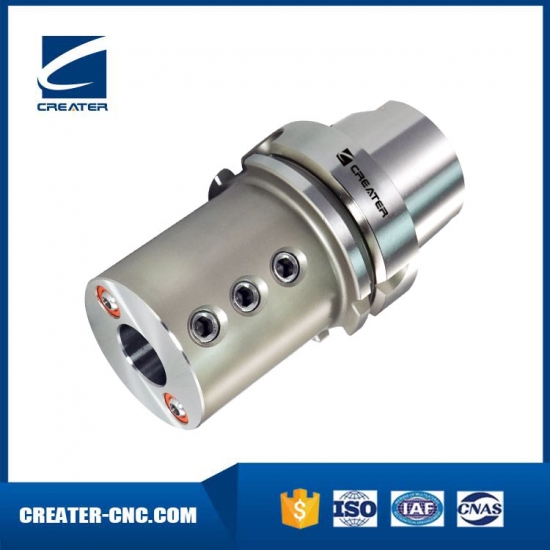

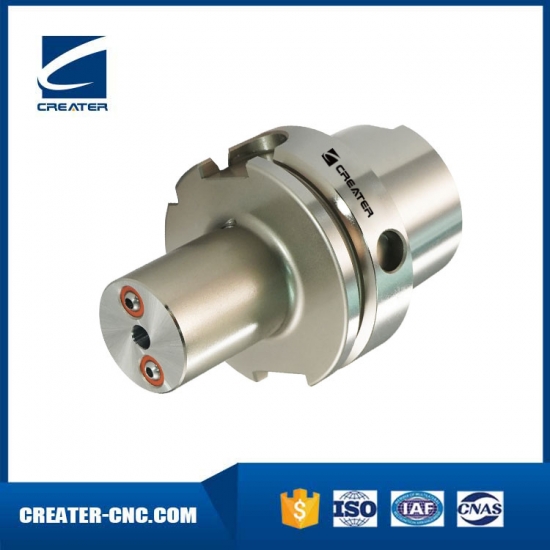

HSK･T Boring Bar Holder
Brand: creater
contact now
  • Specification

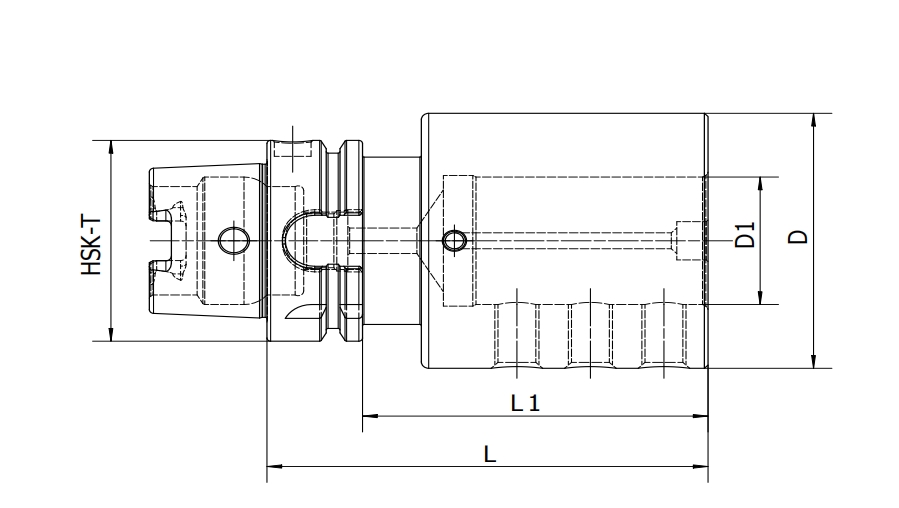

  • Simple figure
  • Precautions







Size d1 d2 l1 l2
HSK40T-E2-06-055 6 34 55 35
HSK40T-E2-08-055 8 34 55 35
HSK40T-E2-10-055 10 34 55 35
HSK40T-E2-12-055 12 36 55 35
HSK40T-E2-16-070 16 40 70 50
HSK40T-E2-20-085 20 44 85 65
HSK63T-E2-06-060 6 34 60 34
HSK63T-E2-08-060 8 34 60 34
HSK63T-E2-10-060 10 34 60 34
HSK63T-E2-12-060 12 36 60 34
HSK63T-E2-16-075 16 40 75 49
HSK63T-E2-20-075 20 44 75 49
HSK63T-E2-25-075 25 50 75 49
HSK63T-E2-32-090 32 56 90 64
HSK63T-E2-40-090 40 63 90 64
HSK100T-E2-06-070 6 34 70 41
HSK100T-E2-08-070 8 34 70 41
HSK100T-E2-10-070 10 34 70 41
HSK100T-E2-12-070 12 36 70 41
HSK100T-E2-16-085 16 40 85 56
HSK100T-E2-20-085 20 44 85 56
HSK100T-E2-25-085 25 50 85 56
HSK100T-E2-32-100 32 56 100 71
HSK100T-E2-40-100 40 63 100 71
